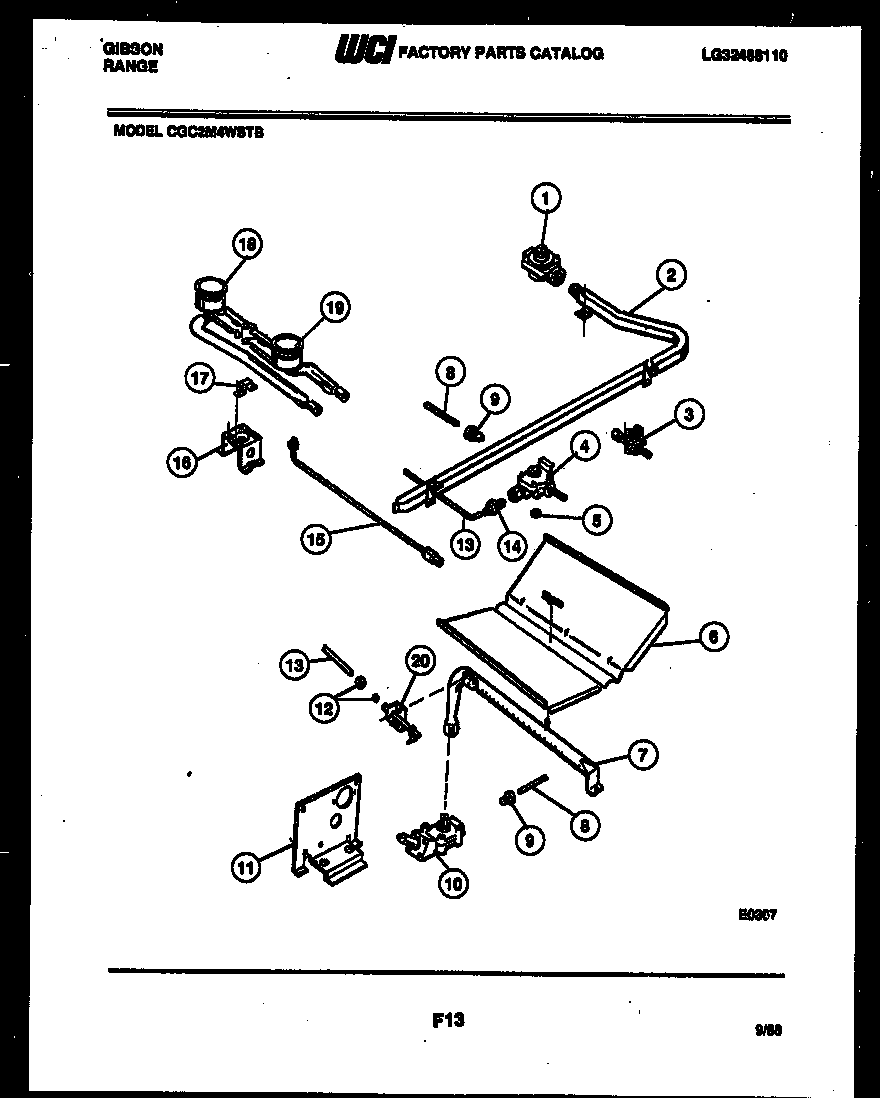

CGC2M4WSTB 06 – BURNER PARTS

Products

Position	Product
*14285	CLIP CAPILLARY (2)
1	5308007974 Frigidaire Pressure Regulator
2	WCI 3017164
3	VALVE – TOP BURNER (4)
4	WCI 08013927
5	WING NUT
6	BAFFLE-OVEN BURNER
7	BURNER OVEN
8	TUBE-FEED OVEN
9	BUT – 3/8 LOXIT
10	VALVE SAFETY
11	SUPPORT-OVEN SAFETY VALVE
12	NUT COMPRESSION W/ SLEEVE
13	TUBE-PILOT FEED OVEN
14	NUT
15	PILOT TOP BURNER (2)
16	SUPPORT – TOP BURNER
17	WCI AP344004
18	BURNER-REAR TOP
19	BURNER-FRONT TOP
20	PILOT-OVEN
