CGC2M5DXC 04 – BROILER DRAWER – Aparts

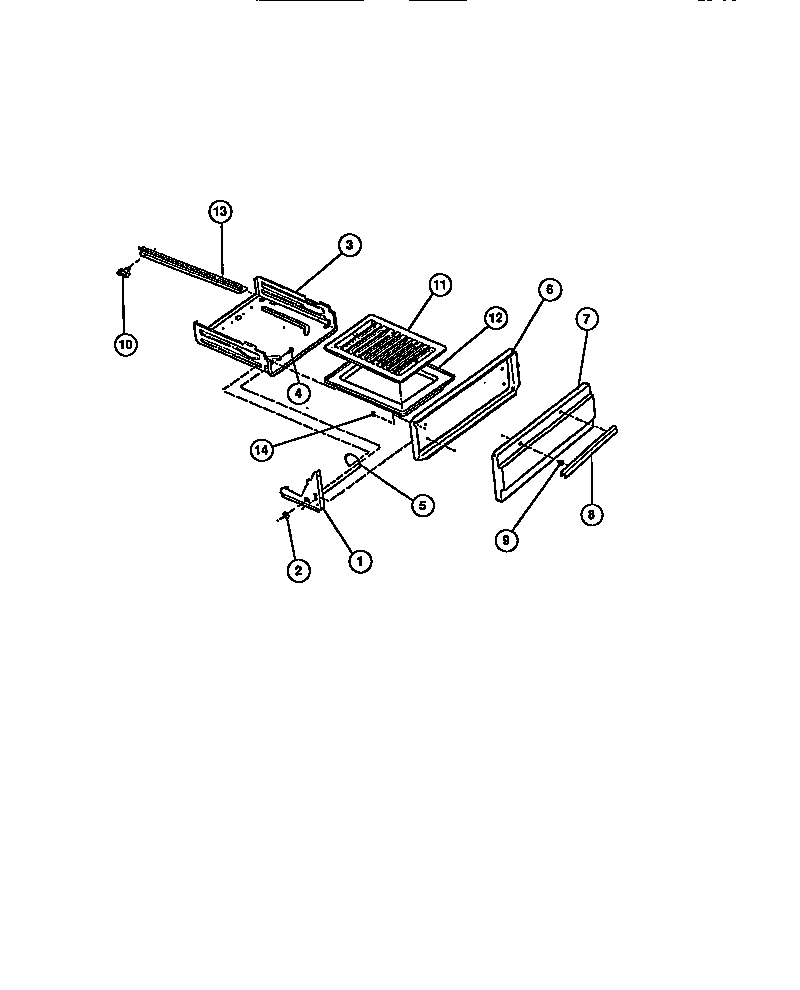

CGC2M5DXC 04 – BROILER DRAWER

Products

Position	Product
1	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5	WCI 3018618`
5	SPRING-BROILER, RH
6	WCI 3202803
7	PANEL - BROILER ALMD
8	WCI 3131125
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12	INSULATION, BROILER DRAWER
12	PAN-BROILER
12	SCREW-PNL ASSY (2)
12	5303300265 Frigidaire Oven Screw
13	WCI 3131153
14	WCI 3206216
