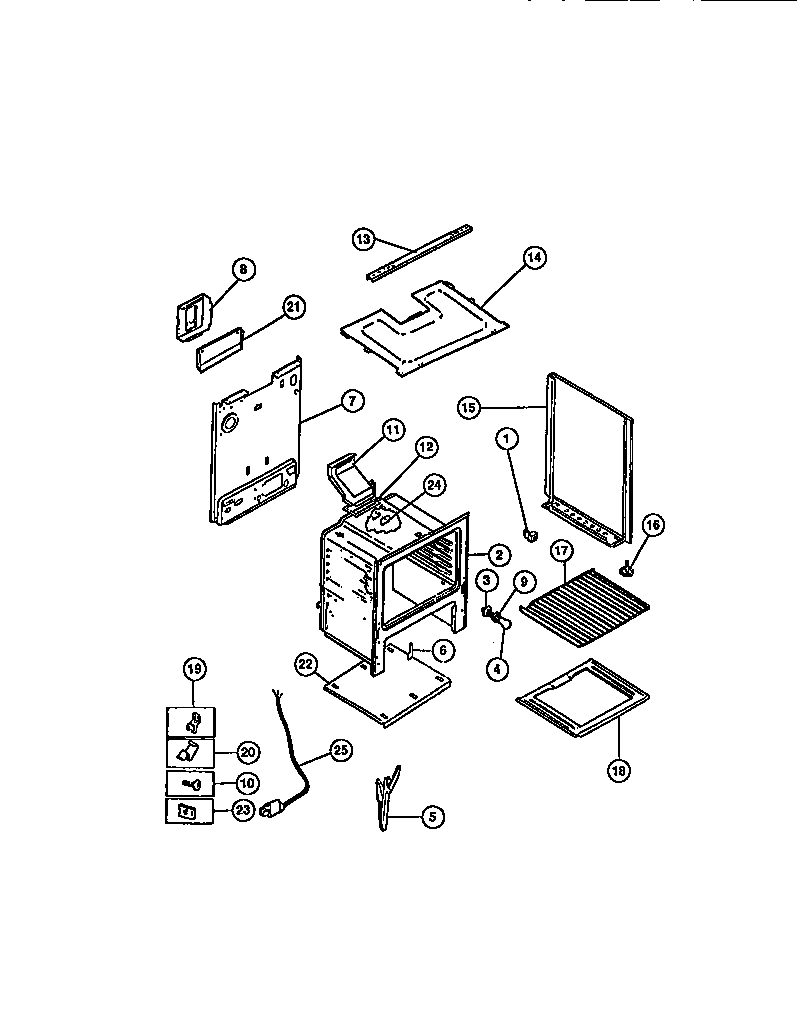

CGC2M5DXC 07 – BODY

CGC2M5DXC 07 – BODY

Written by

in

CGC2M5DXC 07 – BODY

Products

PositionProduct
*53850SHIELD-TOP (NON-ILLUSTRATED)
*53846ANTI-TIP KIT (NOT ILLUSTRATED)
*53843WCI 08067961
*538443131903 Frigidaire Door/Drawer Bumper
*53847COVER-POWER CORD, (NON-ILLUSTRATED)
*53848COVER-OVEN FRONT
*53840WCI 3131252
*53845316064600 Frigidaire Oven Support
*53841DIAGRAM, WIRING (NOT FOR PURCHASE)
*53849SHIELD-FLUE, (NON-ILLUSTRATED)
*53842WCI 08010570
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5WCI 316007002
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15WCI 5303269545
15WCI 5303269543
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18INSULATION, OVEN WRAPPER
18INSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
195303284616 Frigidaire Range Bulb Clip Thermostat
20316539800 Frigidaire Oven Retainer
21WCI 3131348
22WCI 5303270160
23WCI 5308008992
24COVER-IGNITOR
255304515659 Frigidaire Oven Power Cord
