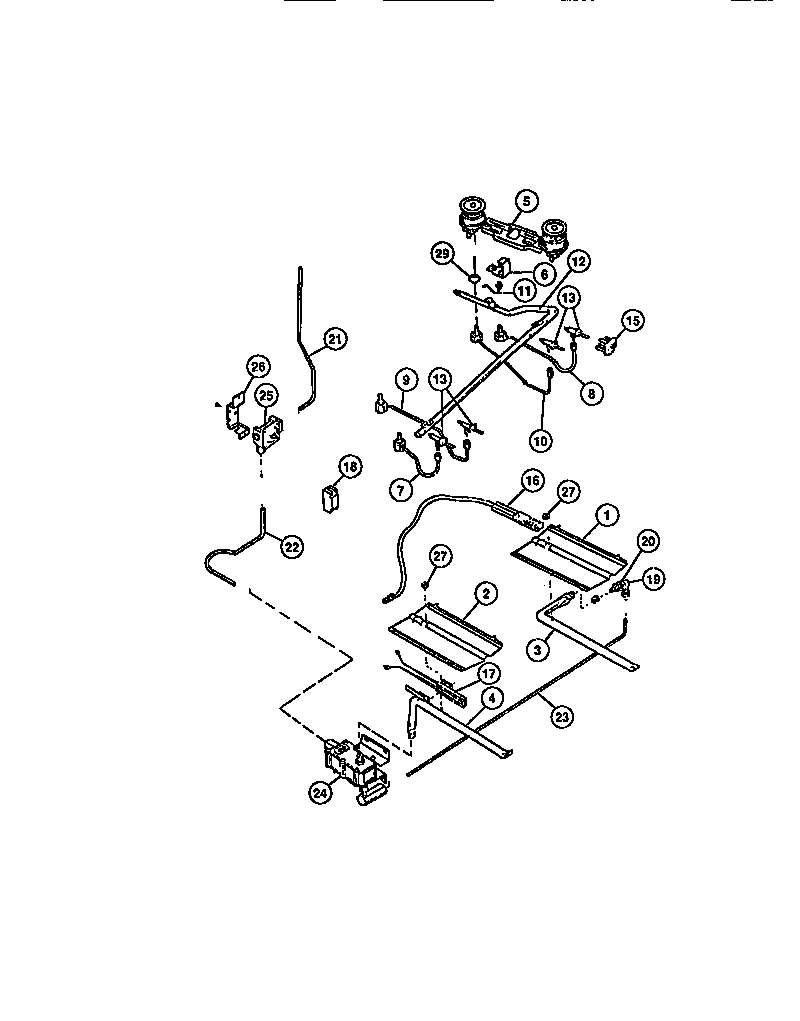

CGC355DXD 04 – BURNERS

CGC355DXD 04 – BURNERS

Written by

in

CGC355DXD 04 – BURNERS

Products

PositionProduct
*00720BRACKET BURNER MTG
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
63016993 Frigidaire Oven Retainer
7TUBE-BURNER, LF
8TUBE-BURNER, RF
9TUBE-BURNER, LR
10TUBE-BURNER, RR
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
13VALVE-TOP 2 POS (4)
15IGN.-SWITCH
165303935068 Frigidaire Flat Igniter
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19WCI 08067979
20NUT
21TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22TUBE-VALVE TO REGUL
23TUBE-VALVE TO MIXER ELBOW
24AWASHER-BLACK
245303208499 Frigidaire Safety Gas Valve
255303935125 Frigidaire Pressure Regulator
26316091600 Frigidaire Oven Bracket
275303013272 Frigidaire Oven Nut
27AWCI 08068015
29NUT, SPECIAL
