CGC355DXD 05 – BODY

CGC355DXD 05 – BODY

Written by

in

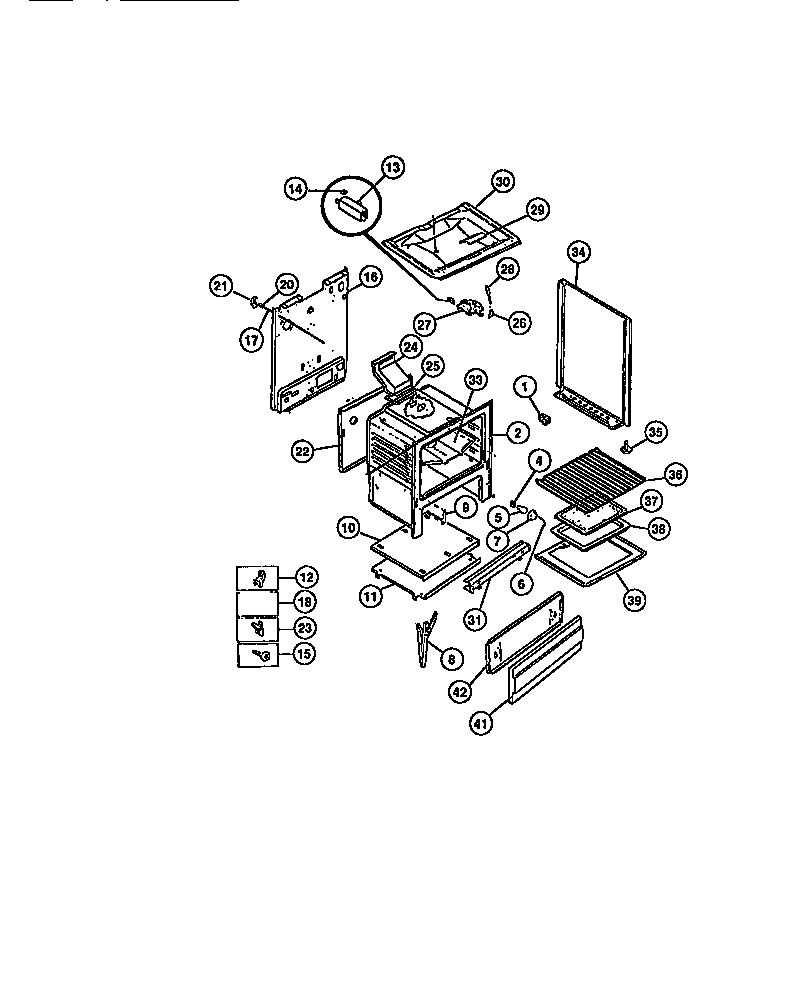

CGC355DXD 05 – BODY

Products

PositionProduct
*00724DIAGRAM WIRING (NOT FOR PURCHASE.)
*00728INSULATION, OVEN WRAPPER
*00732WCI 08067961
*007265304515659 Frigidaire Oven Power Cord
*00731INSULATION OVEN BACK (NON-ILLUSTRATED)
*00734WCI 08068018
*00723SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*00733SHIELD-LATCH
*00729INSULATION, OVEN TOP
*00722WCI 3131590
*00725ANTI-TIP KIT (NOT ILLUSTRATED)
*00735SHIELD-OVN TOP
*00721WCI 3018702
*0073008067973 Frigidaire 0 Insulation
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10SHIELD-HEAT UPPER
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
15316282700 Frigidaire Oven Screw
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
33WCI 3200836
34AWCI 5303269545
34WCI 5303269543
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
41PNL – DRAWER (ALMD)
42SHIELD-PNL
