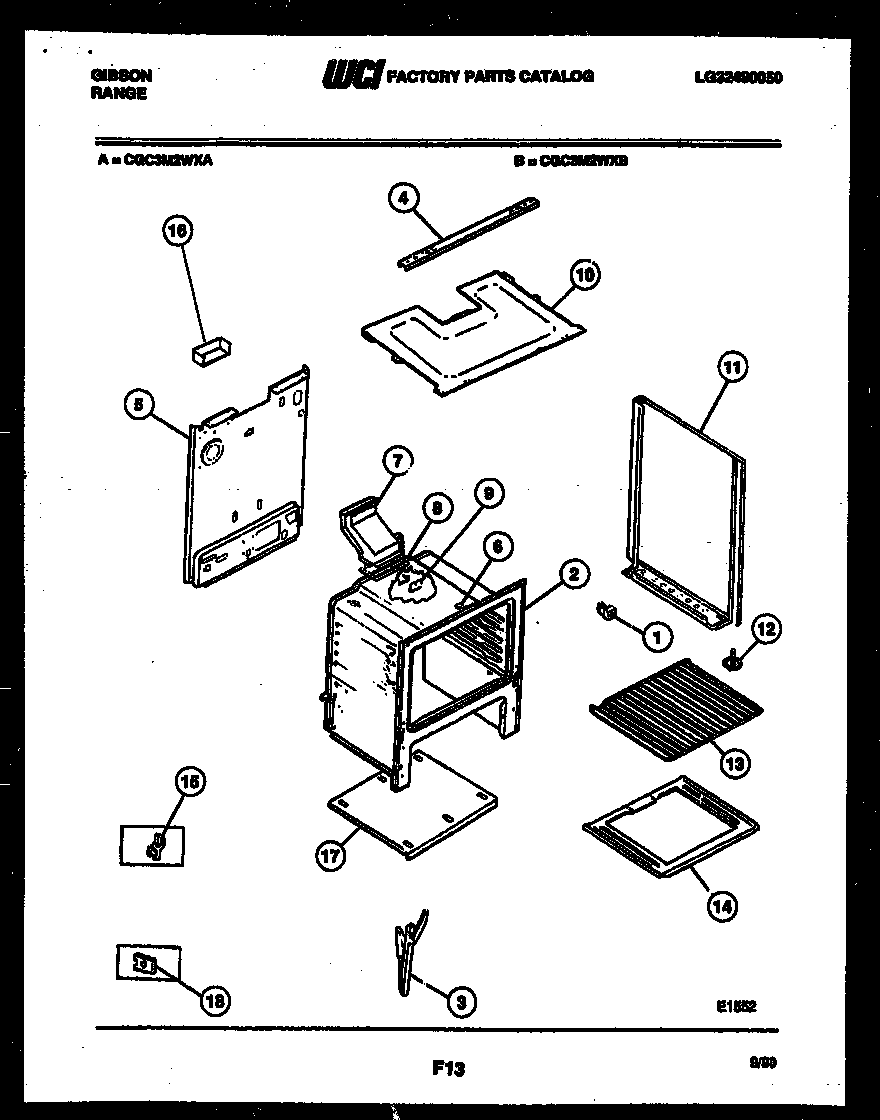

CGC3M2WXA 06 – BODY PARTS

CGC3M2WXA 06 – BODY PARTS

Written by

in

CGC3M2WXA 06 – BODY PARTS

Products

PositionProduct
*23544SHIELD-FLUE, (NON-ILLUSTRATED)
*23544ANTI-TIP KIT (NOT ILLUSTRATED)
*235433051218 Frigidaire Oven Plate
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11APNL-BODYSIDE LH-WHITE
11PNL-BODYSIDE RH-ALMOND
11PNL-BODYSIDE RH-WHITE
11APNL-BODYSIDE LH-ALMOND
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BINSULATION, OVEN WRAPPER
155303284616 Frigidaire Range Bulb Clip Thermostat
16COVER-VENT
16A316064600 Frigidaire Oven Support
17WCI 3131180
183203010 Frigidaire Clip
