CGC3M3WSTD 03 – BROILER DRAWER PARTS

CGC3M3WSTD 03 – BROILER DRAWER PARTS

Written by

in

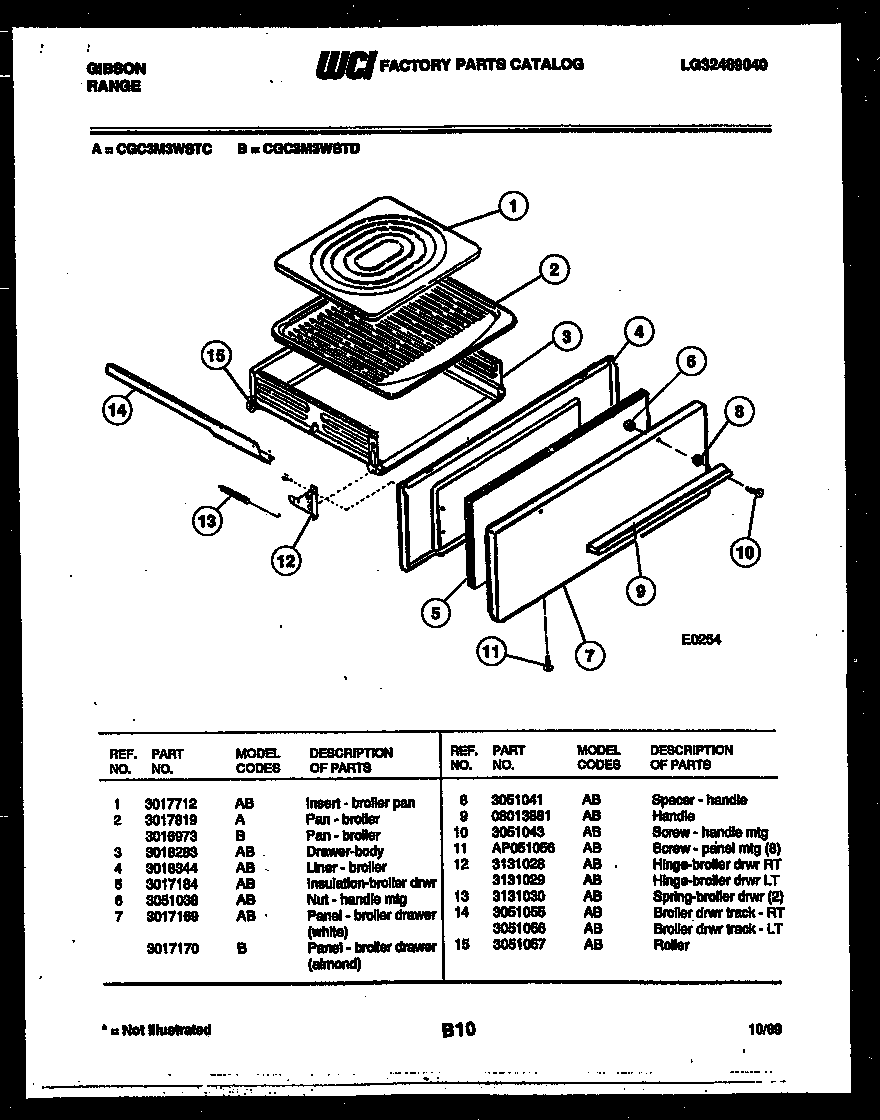

CGC3M3WSTD 03 – BROILER DRAWER PARTS

Products

PositionProduct
1BROILER GRID
2WCI 3016973
35304504568 Frigidaire Drawer Assembly
4WCI 3018344
5WCI 3017184
65303013272 Frigidaire Oven Nut
7PANEL – BLACK
7WCI 3017170
8SPACER HANDLE (2)
9WCI 08013881
105303292012 Frigidaire Oven Screw
11WCI AP051056
12HINGE – RH
12AHINGE – LH
13SPRING (2)
14ATRACK LEFT HAND
14TRACK RIGHT HAND
15WCI 3051057
