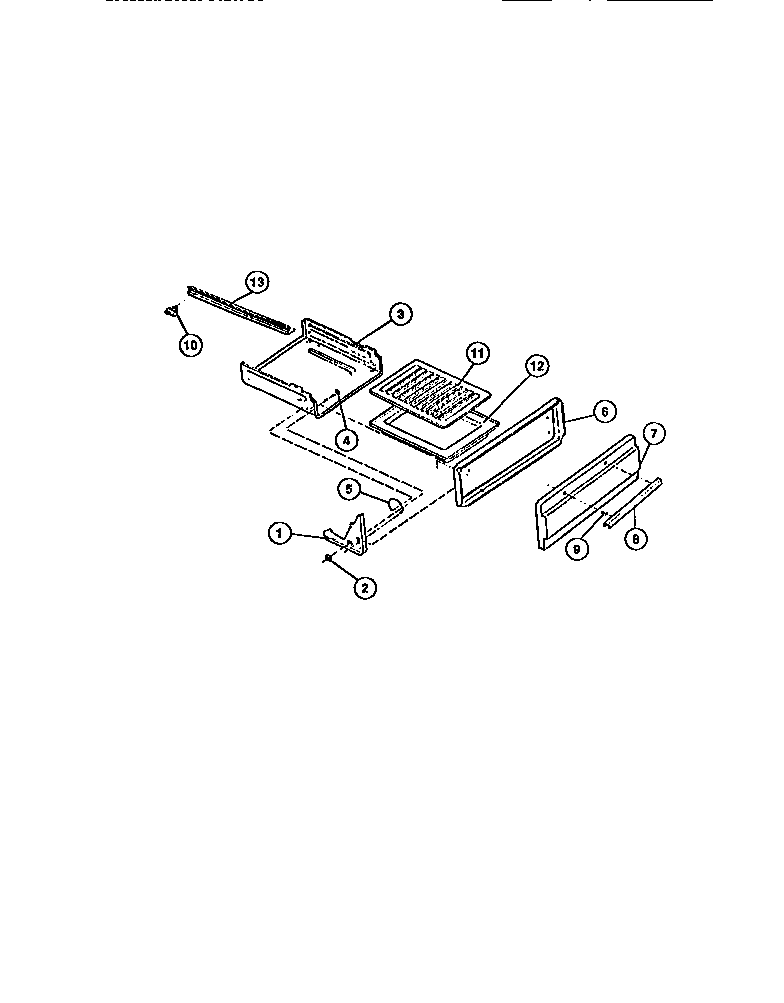

CGC3M4DXD 05 – BROILER DRAWER

Products

Position	Product
*35840	WCI 3206216
*35842	5303300265 Frigidaire Oven Screw
*35841	INSULATION, BROILER DRAWER
*35843	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
1	WCI 3018860
1	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5	WCI 3018618`
5	SPRING-BROILER, RH
6	WCI 3202803
7	PANEL - BROILER ALMD
7	PNL-DRAWER (WHTE)
8	HANDLE
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12	PAN-BROILER
13	WCI 3131153
