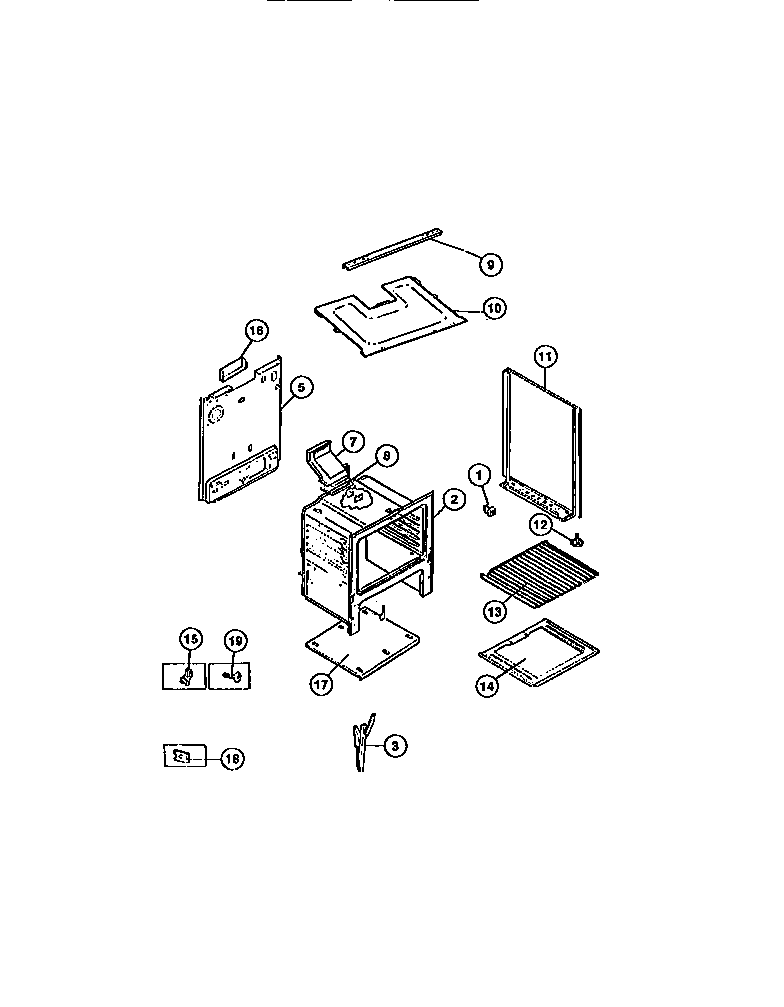

CGC3M4DXD 07 – BODY

Products

PositionProduct
*35849SHIELD-FLUE, (NON-ILLUSTRATED)
*35848ANTI-TIP KIT (NOT ILLUSTRATED)
*35844NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*35847COVER-IGNITOR
*35851INSULATION OVEN BACK (NON-ILLUSTRATED)
*35850INSULATION, OVEN WRAPPER
*35846COVER-OVEN FRONT
*358453051218 Frigidaire Oven Plate
*35852316064600 Frigidaire Oven Support
1SPACER-BODYSIDE, (8)
3Hinge,oven door ,(2)
5WCI 3203082
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9WCI 3203394
10BURNER BOX BOTTOM
11PNL-B/S-LH-WHITE
11PNL-B/S-RH-WHITE
11WCI 5303269545
11WCI 5303269543
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
155303284616 Frigidaire Range Bulb Clip Thermostat
16COVER-VENT
17BASE-BROIL
183203010 Frigidaire Clip
19316282700 Frigidaire Oven Screw
