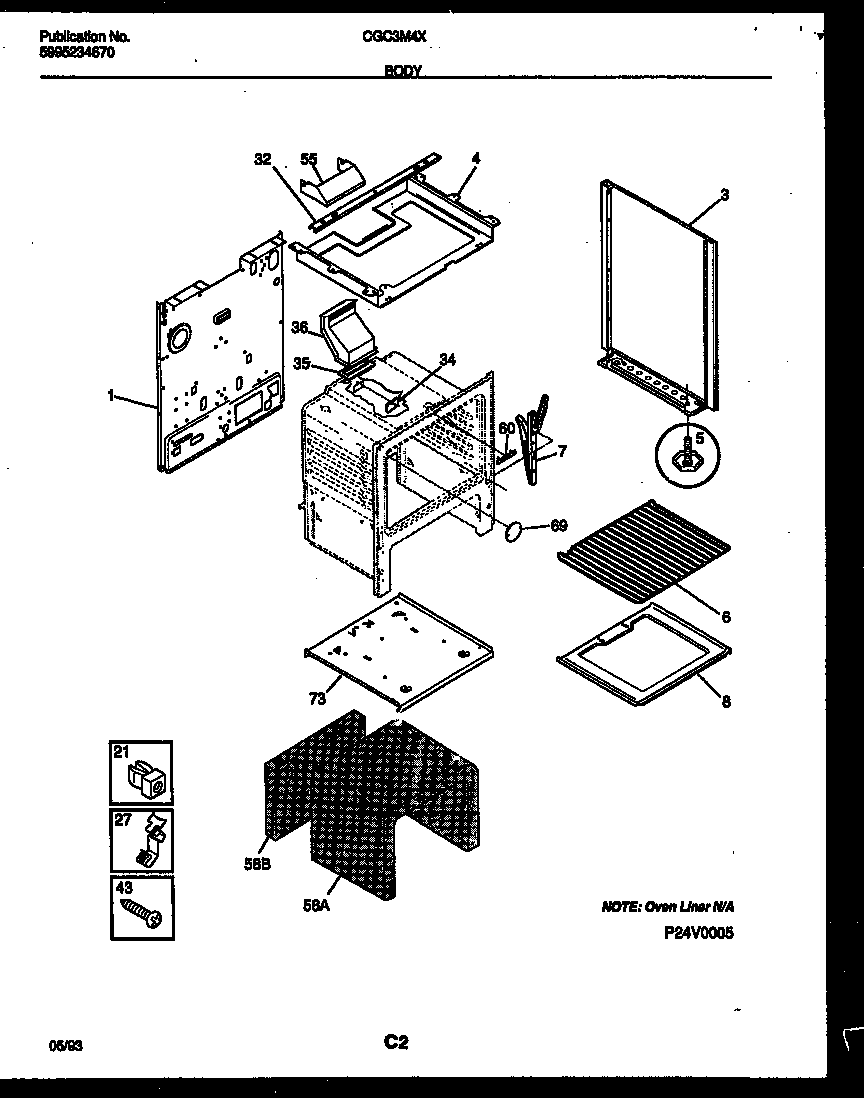

CGC3M4DXE 04 – BODY PARTS

CGC3M4DXE 04 – BODY PARTS

Written by

in

CGC3M4DXE 04 – BODY PARTS

Products

PositionProduct
1WCI 3203082
3WCI 5303269543
3AWCI 5303269545
4BURNER BOX BOTTOM
5BANTI-TIP KIT (NOT ILLUSTRATED)
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36316204402 Frigidaire Oven Flue
43316282700 Frigidaire Oven Screw
55COVER-VENT
55ASHIELD-FLUE, (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
693051218 Frigidaire Oven Plate
73BASE-BROIL
