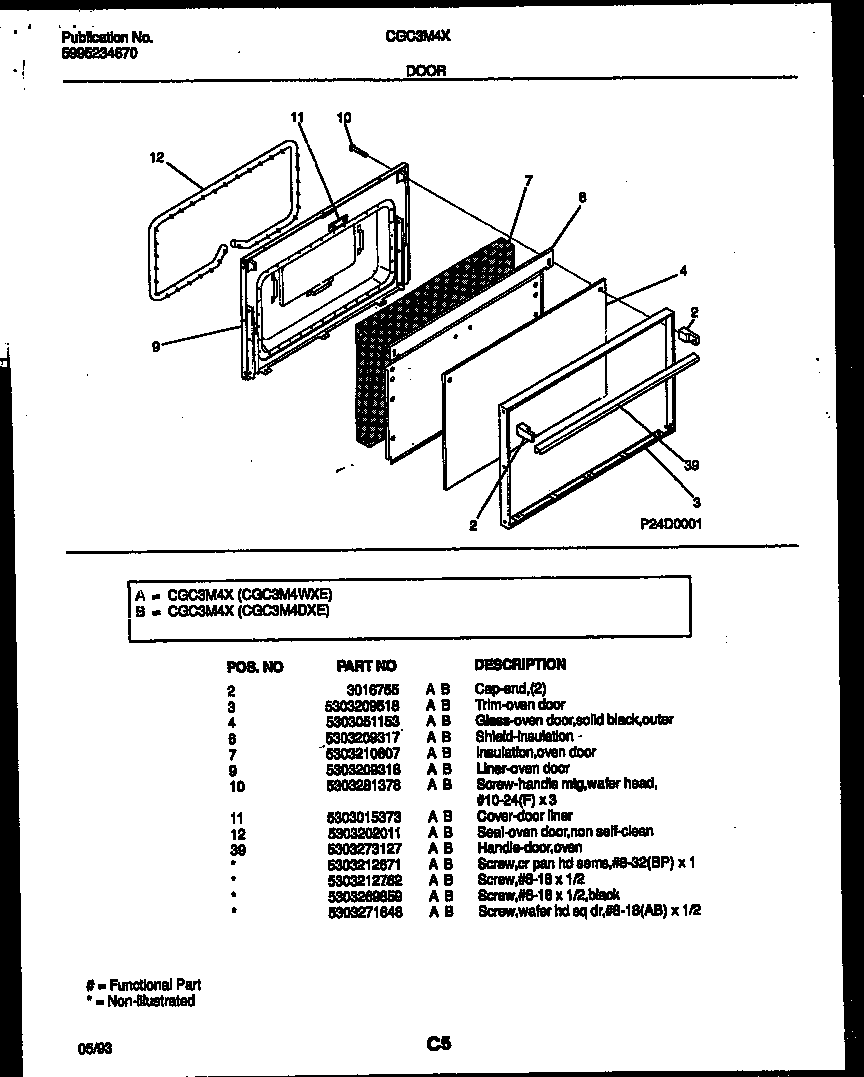

CGC3M4DXE 05 – DOOR PARTS

Products

Position	Product
*62146	BRACKET-HINGE,MAIN TOP RH
*62145	WCI 3018618`
*62144	WCI 5303131356
*62144	PAN-BROILER
*62147	316055800 Frigidaire Oven Grate
*62147	WCI 3131190
*62142	DRAWER-BROILER
*62142	WCI 3202803
*62146	ROD-MAIN SUPPORT (2)
*62143	GLIDE-DRAWER, REAR
*62143	WCI 3131386
*62143	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*62146	BRACKET-HINGE,MAIN TOP LH
*62145	MAIN TOP-ALMD
*62147	INSULATION, BROILER DRAWER
*62143	FSTNR, SPACER (2)
*62148	HANDLE
*62151	WCI 5303269859
*62151	5303300265 Frigidaire Oven Screw
*62145	WCI 3131153
*62144	WCI 3018860
*62151	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*62147	PIN, HINGE (2)
*62148	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
*62142	PANEL – BROILER ALMD
*62144	SPRING-BROILER, RH
*62145	WCI 3206216
*62151	5303271648 Frigidaire Oven Screw
*62146	5303131115 Frigidaire Range Chrome Drip Bowl, 8"
*62144	WCI 3200673
2	316137003 Frigidaire Range / Cooktop End Cap
3	WCI 5303209518
4	GLASS-FRONT-BLACK
6	WCI 5303209317
7	INSULATION-OVEN DR
9	LINER-OVEN DOOR
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
11	WCI 5303015373
12	5303202011 Frigidaire Door Seal
39	HANDLE-DOOR, OVEN
