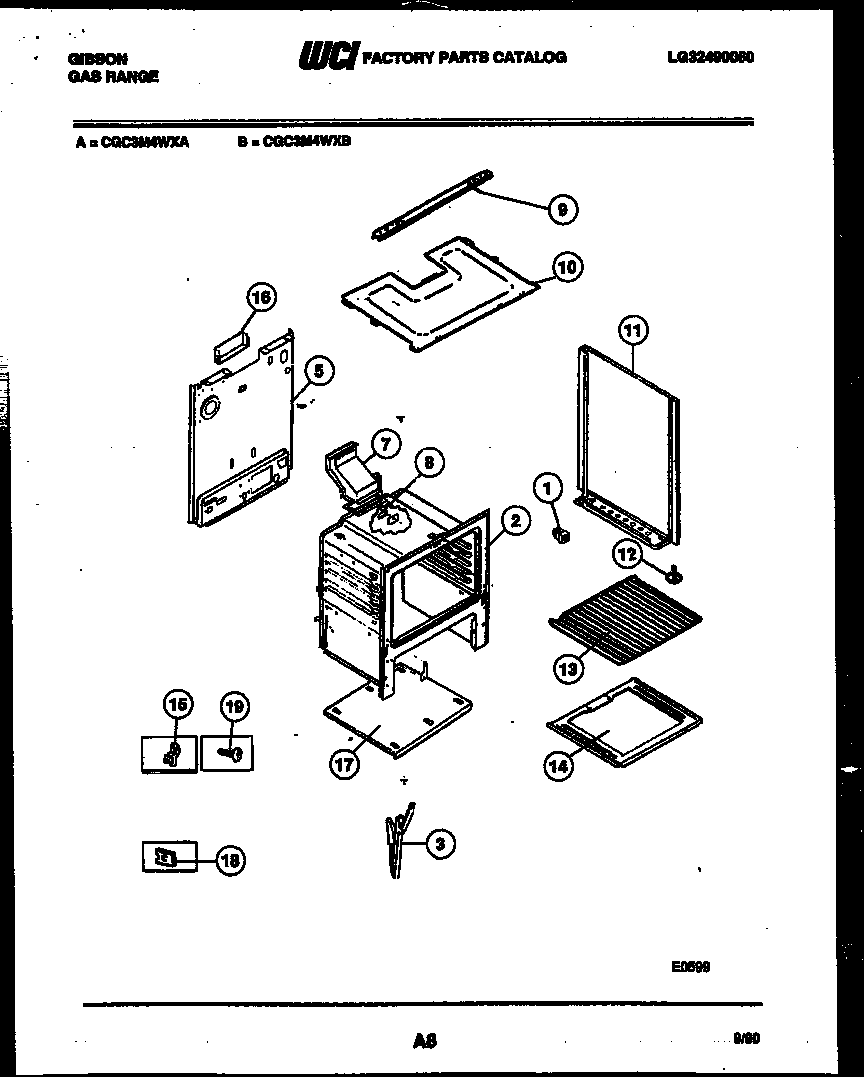

CGC3M4WXB 07 – BODY PARTS

CGC3M4WXB 07 – BODY PARTS

Written by

in

CGC3M4WXB 07 – BODY PARTS

Products

PositionProduct
*23765SHIELD-FLUE, (NON-ILLUSTRATED)
*23765COVER-IGNITOR
*237653051218 Frigidaire Oven Plate
*23765COVER-OVEN FRONT
*23765ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3CHAN-DOOR HINGE (2)
5WCI 3203082
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9WCI 3203394
10BURNER BOX BOTTOM
11PNL-BODYSIDE RH-WHITE
11APNL-BODYSIDE LH-WHITE
11APNL-BODYSIDE LH-ALMOND
11PNL-BODYSIDE RH-ALMOND
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
14AINSULATION, OVEN WRAPPER
14BINSUL – OVEN BACK (NON-ILLUSTRATED)
155303284616 Frigidaire Range Bulb Clip Thermostat
16A316064600 Frigidaire Oven Support
16COVER-VENT
17WCI 3131180
183203010 Frigidaire Clip
19316282700 Frigidaire Oven Screw
