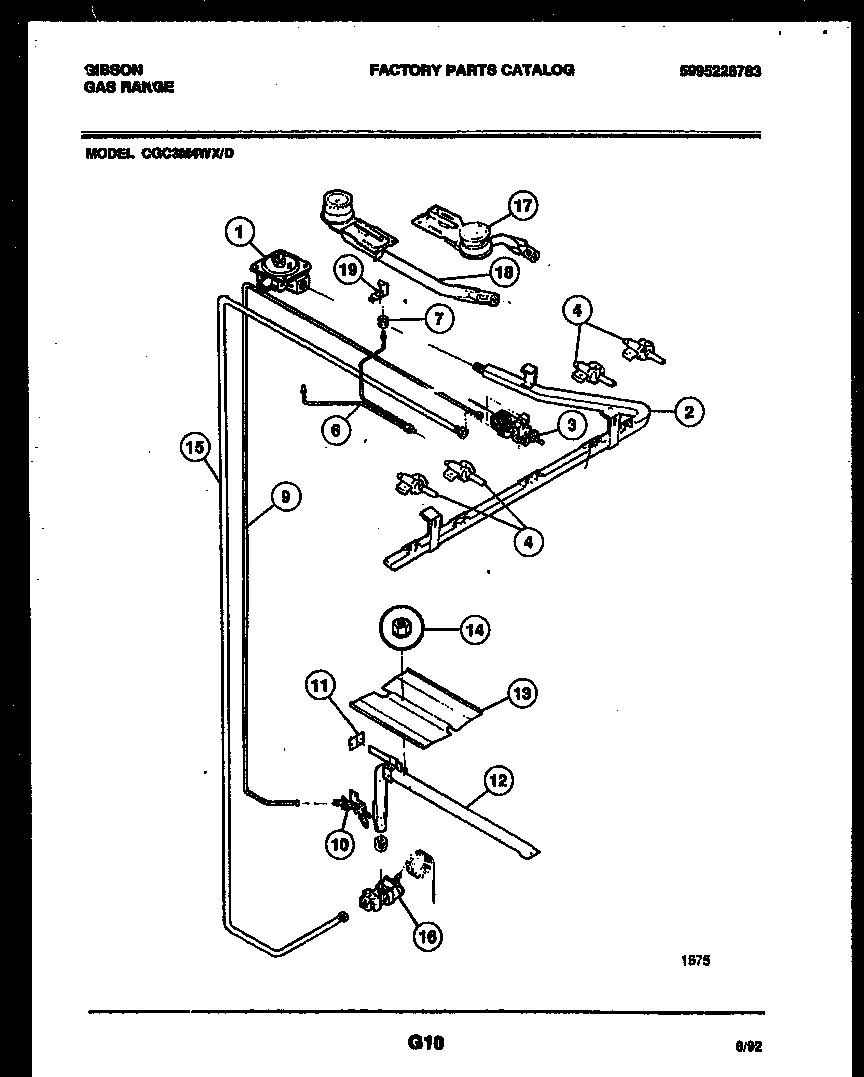

CGC3M4WXD 06 – BURNER PARTS

Products

Position	Product
1	WCI 5303016997
2	WCI 5303280588
3	WCI 316052000
4	VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
6	TUBING-TOP PILOT, DUAL
7	CAP-TOP PILOT, (2)
9	Tubing`thermo/pilot `3/16 ,alum
10	WCI 5303280589
11	WCI 3018603
12	WCI 5303280585
13	WCI 3203265
14	5303013272 Frigidaire Oven Nut
15	TUBE – ALUM THERMO/SAFETY W/ FIT
16	WCI 5303280593
17	5304506427 Frigidaire Oven Range Surface Burner (White)
18	5304506426 Frigidaire Oven Top Rear Burner
19	SHIELD-PILOT, STAINLESS STEEL, (2)
