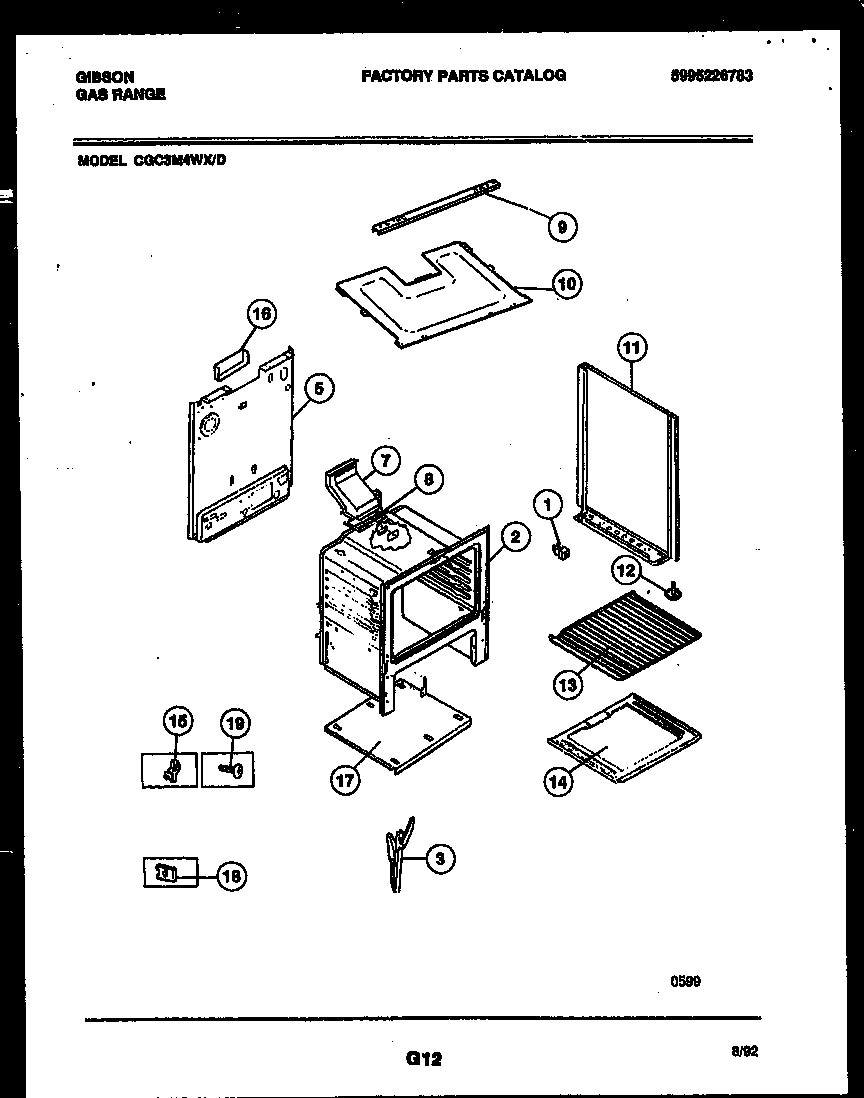

CGC3M4WXD 07 – BODY PARTS

Products

Position	Product
*52710	SHIELD-FLUE, (NON-ILLUSTRATED)
*52710	COVER-IGNITOR
*52710	ANTI-TIP KIT (NOT ILLUSTRATED)
*52710	COVER-OVEN FRONT
*52710	3051218 Frigidaire Oven Plate
1	SPACER-BODYSIDE, (8)
3	Hinge,oven door ,(2)
5	WCI 3203082
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	WCI 3203394
10	BURNER BOX BOTTOM
11	PNL-B/S-RH-WHITE
11A	PNL-B/S-LH-WHITE
11	WCI 5303269543
11A	WCI 5303269545
12A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14A	INSULATION, OVEN WRAPPER
14B	INSULATION OVEN BACK (NON-ILLUSTRATED)
14	BTTM-OVEN
15	5303284616 Frigidaire Range Bulb Clip Thermostat
16A	316064600 Frigidaire Oven Support
16	COVER-VENT
17	BASE-BROIL
18	3203010 Frigidaire Clip
19	316282700 Frigidaire Oven Screw
