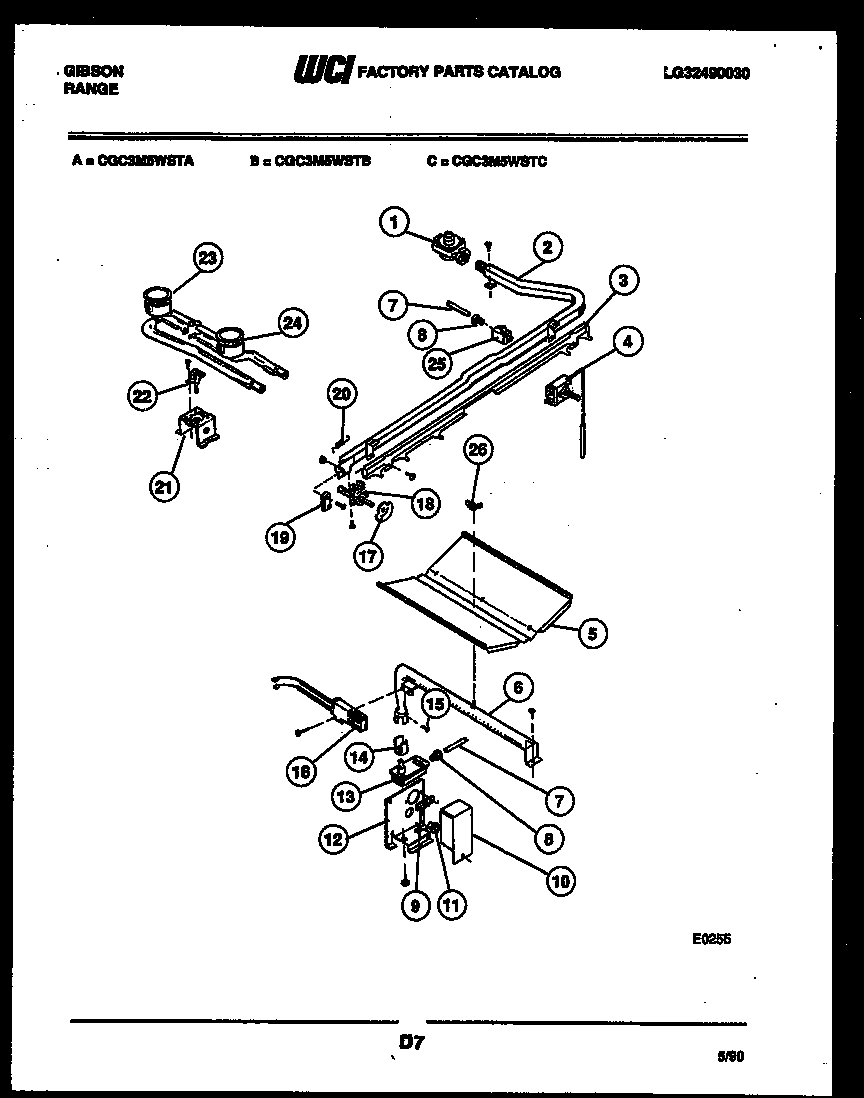

CGC3M5WSTA 06 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	MANIFOLD
3	SLIDE BAR
4	WCI 5308013926
4A	WCI 5300009126
5	BAFFLE-OVEN BURNER
6	WCI 08009418
7	TUBING – OVEN SUPPLY
8	NUT-LOXIT (3/8)
9	TERMINAL BLOCK
10	COVER – OVEN SAFETY VALVE
11	WCI 08008051
12	SUPPORT-OVEN SAFETY VALVE
13	WCI 5308009419
14	WCI 5308008010
15	SCREW
16	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17	CAM-VALVE
18	WCI 5303131057
19	WCI 5303131094
20	SPRING – SLIDE BAR
21	WCI 3131076
22A	IGNITOR-TOP BURNER
22	WCI 3016405
23	Burner,top ,rear
24	BURNER-TOP FRONT
25	WCI 5303131099
25A	ANTI-TIP KIT
26	NUT – WING
