CGC3M6DXD 07 – BODY

CGC3M6DXD 07 – BODY

Written by

in

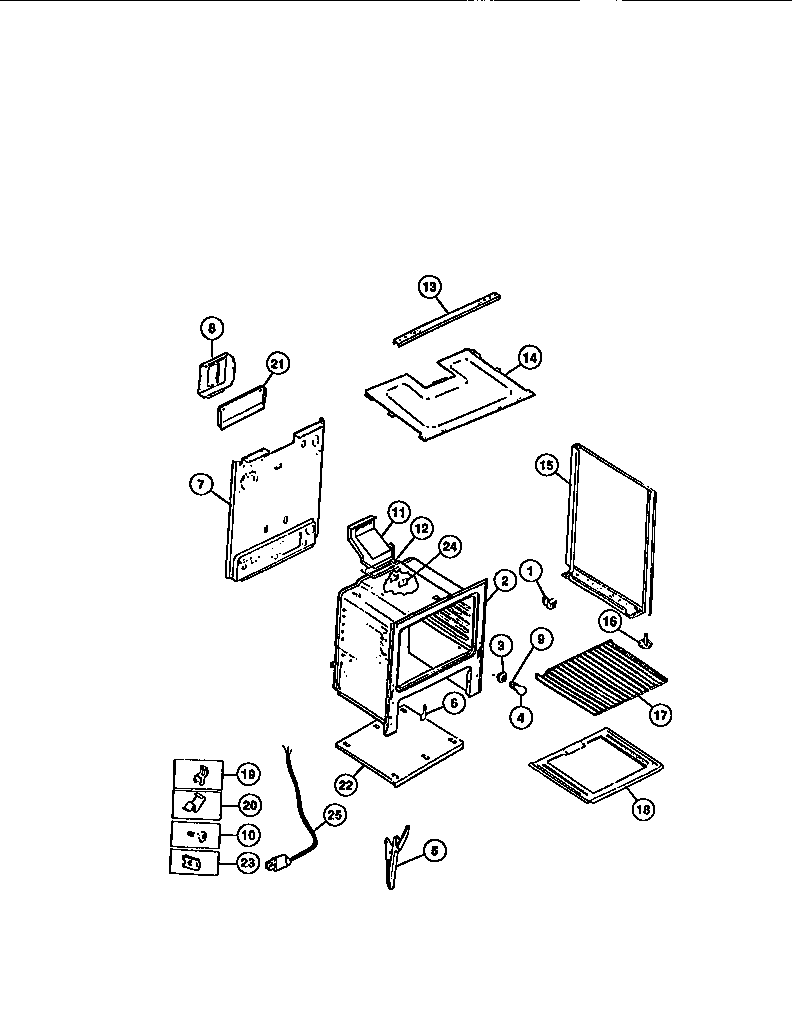

CGC3M6DXD 07 – BODY

Products

PositionProduct
*46562DIAGRAM, WIRING (NOT FOR PURCHASE)
*46561WCI 08010570
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5WCI 316007002
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15AWCI 5303269545
15WCI 5303269543
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18AINSULATION, OVEN WRAPPER
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
195303284616 Frigidaire Range Bulb Clip Thermostat
19AWCI 08067961
20316539800 Frigidaire Oven Retainer
21A3131903 Frigidaire Door/Drawer Bumper
21WCI 3131348
21B316064600 Frigidaire Oven Support
22AANTI-TIP KIT (NOT ILLUSTRATED)
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22WCI 5303270160
23ACOVER-OVEN FRONT
233203010 Frigidaire Clip
24ASHIELD-FLUE, (NON-ILLUSTRATED)
24BSHIELD-TOP (NON-ILLUSTRATED)
24COVER-IGNITOR
255304515659 Frigidaire Oven Power Cord
