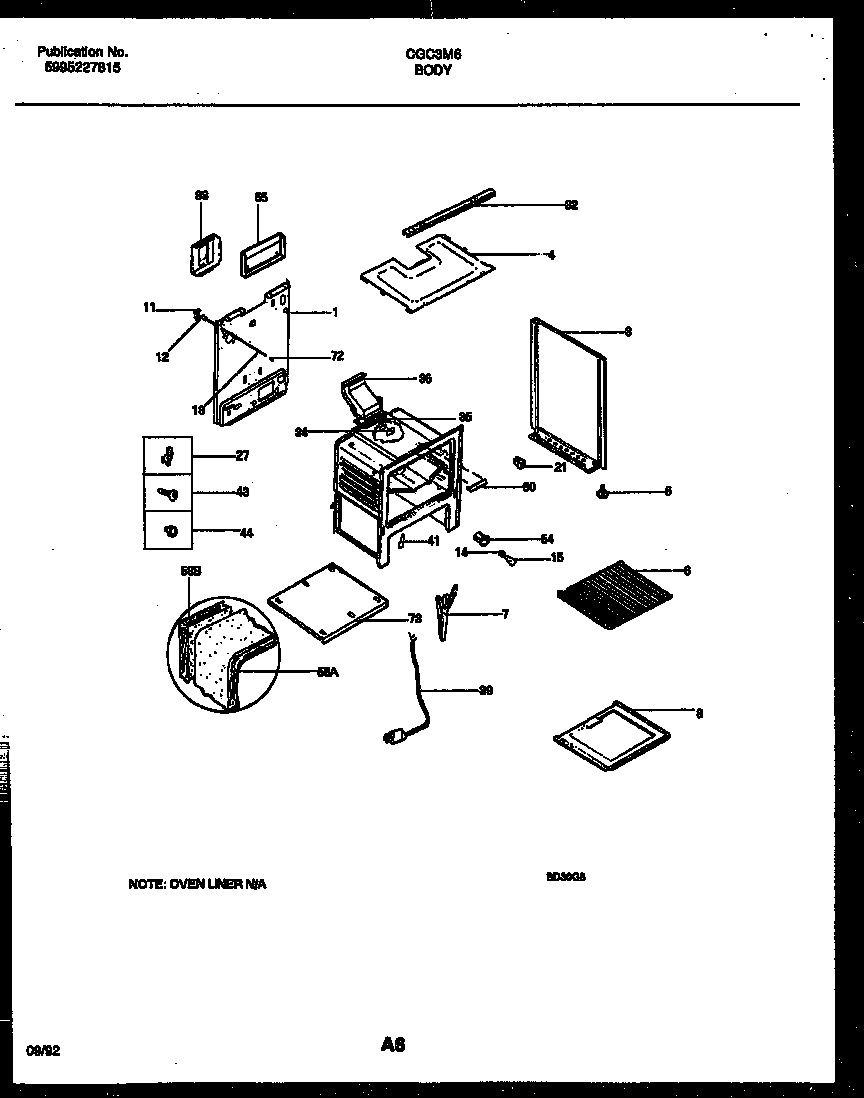

CGC3M6DXF 04 – BODY PARTS

Products

PositionProduct
*52791WCI 5303280614
*52791WCI 08067961
1WCI 3203082
3BWCI 5303269545
3WCI 5303269543
4BURNER BOX BOTTOM
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5AANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8A316064600 Frigidaire Oven Support
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32CHANNEL-BURNER BOX
33WCI 3131660
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39ACOVER-POWER CORD, (NON-ILLUSTRATED)
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
54WCI 5303271606
55ASHIELD-FLUE, (NON-ILLUSTRATED)
55SHIELD-TOP (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
72COVER-LIGHT/SWITCH ROD
73BASE-BROIL
