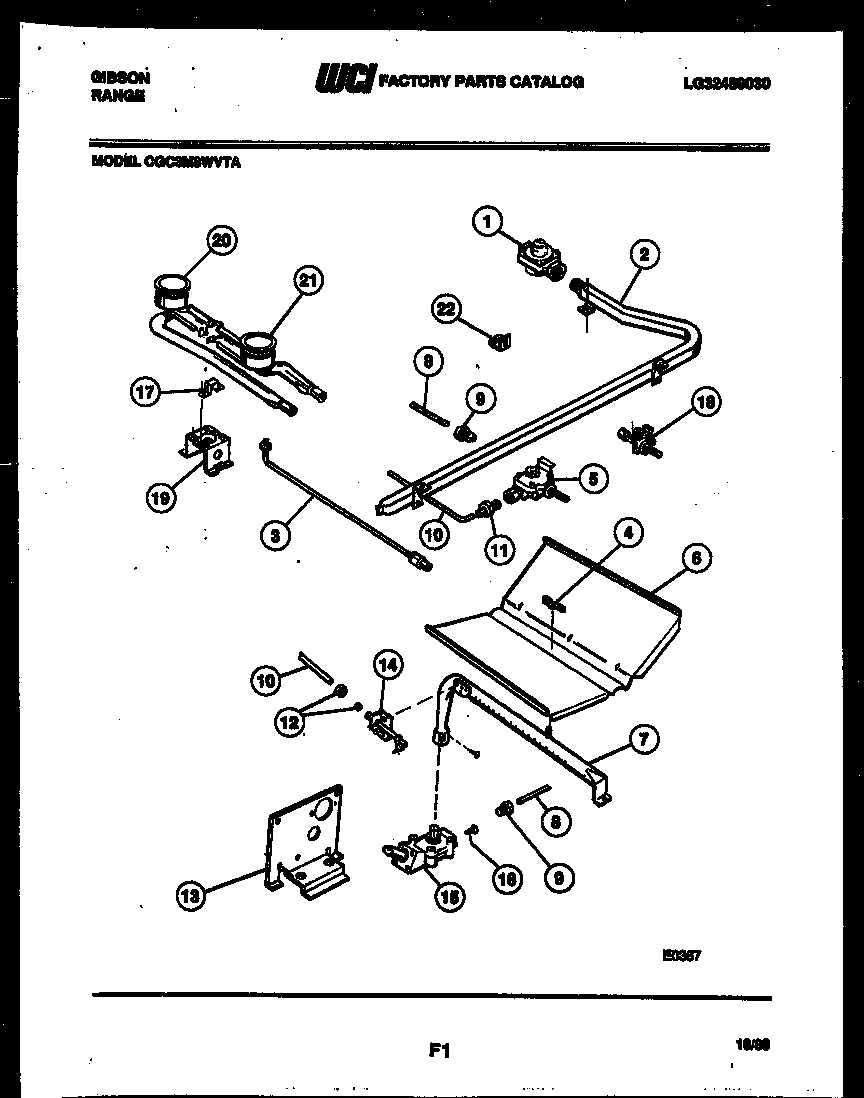

CGC3M8WVTA 04 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 3017164
3	PILOT-TOP BURNER (RIGHT)
4	NUT – WING
5	WCI 08013927
6	BAFFLE-OVEN BURNER
7	WCI 08013855
8	TUBE-OVEN FEED
9	WCI 08008363
10	TUBE OVEN PILOT
11	WCI 3131074
12	NUT & SLEEVE
13	SUPPORT-OVEN SAFETY VALVE
14	WCI 3205598
15	WCI 08013942
16	WCI 3131067
17	STRAP – PILOT SHIELD
18	WCI 3131057
19	SUPPORT – TOP BURNER
20	BURNER – TOP REAR
21	BURNER – TOP FRONT
22	CLIP-CAPILLARY (NON-ILLUSTRATED)
