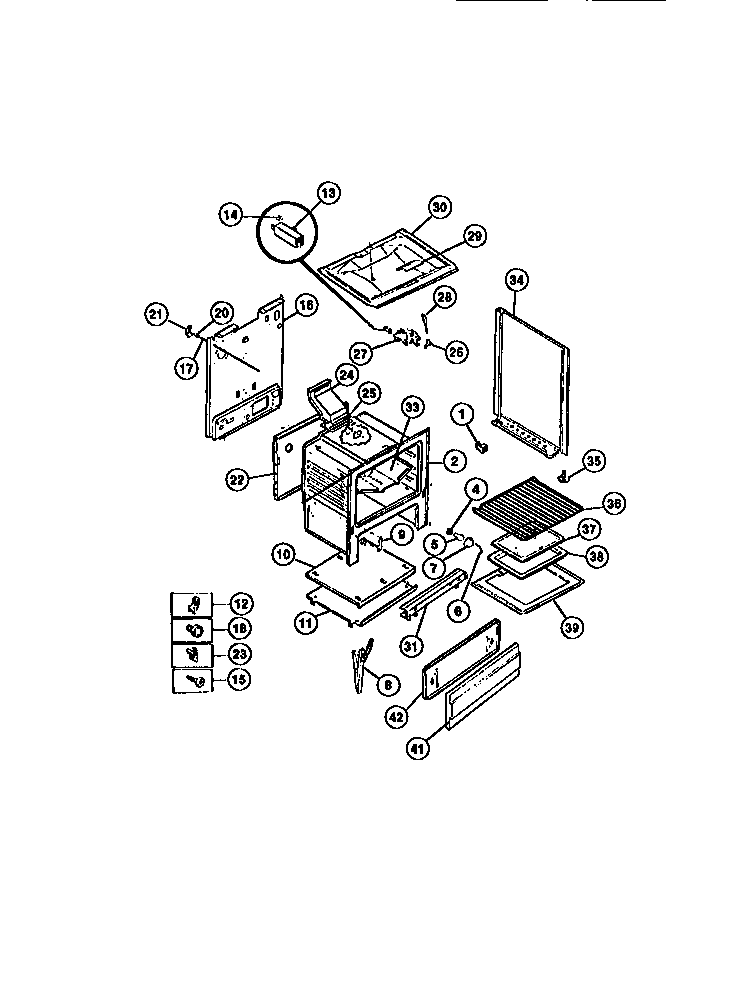

CGC3S5DXE 05 – BODY

Products

Position	Product
*64578	WCI 08010570
*64563	SHIELD-LATCH
*64564	WCI 08067961
*64574	DIAGRAM WIRING (NOT FOR PURCHASE.)
*64562	WCI 08013188
*64572	WCI 5303269502
*64575	ANTI-TIP KIT (NOT ILLUSTRATED)
*64566	08067973 Frigidaire 0 Insulation
*64576	5304515659 Frigidaire Oven Power Cord
*64568	INSULATION, OVEN WRAPPER
*64565	INSULATION OVEN BACK (NON-ILLUSTRATED)
*64561	SHIELD-LATCH (NON-ILLUSTRATED)
*64569	WCI 08068018
*64573	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*64567	INSULATION, OVEN TOP
*64570	SHIELD-OVN TOP
*64571	WCI 3018702
1	SPACER-BODYSIDE, (8)
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
8	CHAN-DOOR HINGE (2)
9	WCI 3131570
10	SHIELD-HEAT UPPER
11	WCI 08067992
11	WCI 3131313
12	5303284616 Frigidaire Range Bulb Clip Thermostat
13	WCI 3131672
14	STUD SPACER (2) (NON-ILLUSTRATED)
14	FSTNR-PUSH ON
15	316282700 Frigidaire Oven Screw
16	WCI 3203082
17	WCI 5303209316
18	3131903 Frigidaire Door/Drawer Bumper
20	SWITCH-OVEN LITE DOOR
21	WCI 5303131289
22	WCI 08067991
23	CLIP-WIRE
24	WCI 3131931
25	316542102 Frigidaire Flue Gasket
26	WCI 3203218
27	WCI 5303015453
28	WCI 5303131357
29	WCI 08067757
30	WCI 3011597
31	SHIELD-FRONT
33	WCI 3200836
34	WCI 5303269545
34	WCI 5303269543
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 5303131356
38	PAN-BROILER
39	BTTM-OVEN
39	316064600 Frigidaire Oven Support
41	PNL – DRAWER (ALMD)
42	SHIELD-PNL
