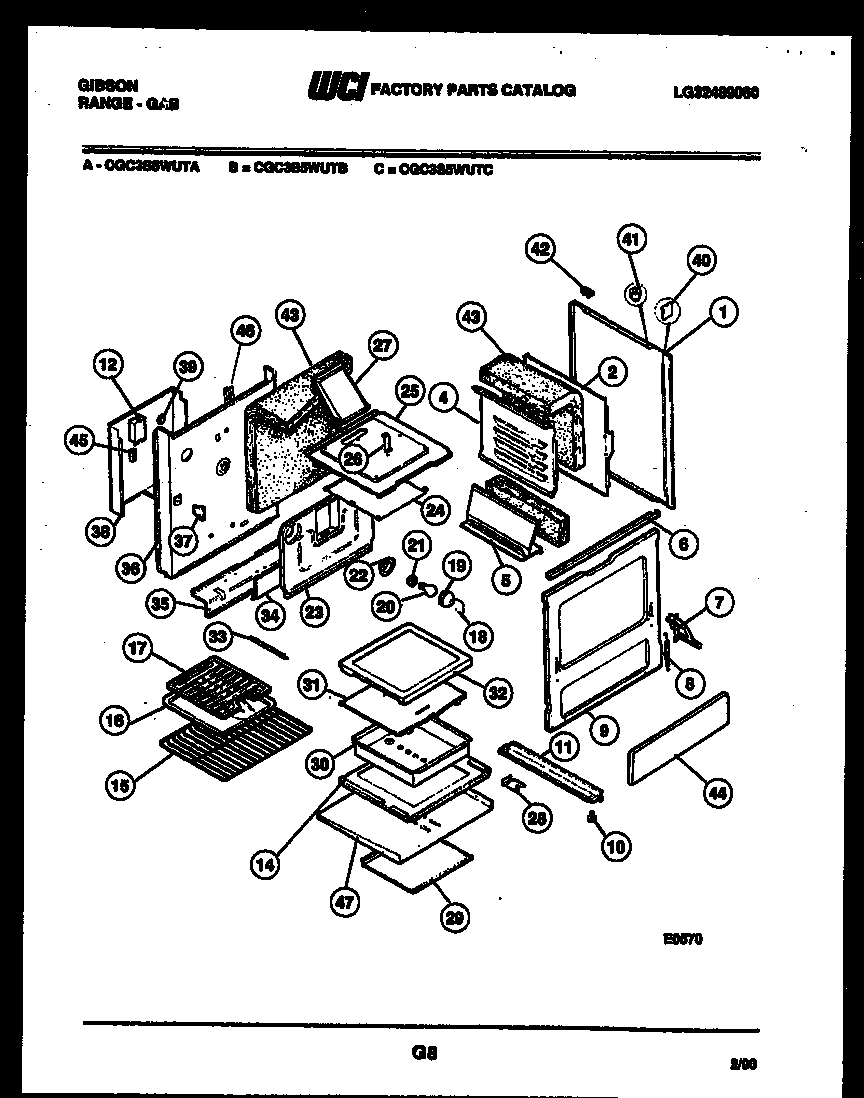

CGC3S5WUTA 06 – BODY PARTS

Products

Position	Product
1	PANEL-BODYSIDE (WHITE) (2)
2	WCI 3131794
4B	WCI 3131787
4	LINER-RIGHT SIDE
5A	WCI 3131054
5	WCI 3131053
6	SUPPORT CONTROL PNL
7A	HINGE – DOOR RH
7	318348801 Frigidaire Oven Left Side Door Hinge
8	SPRING (2)
9	FRAME-FRONT
10	WCI 08008041
11	BASE RAIL
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14	LINING-OVEN BOTTOM
15	RACK-OVEN
16	WCI 3131826
17	WCI 08011647
18	RETAINER-OVEN LIGHT LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	316116400 Frigidaire Oven Light Socket
22	WCI 3009290
23	LINER OVEN BACK
24	WCI 08011509
25	WCI 3131802
26	WCI 3131800
27	VENT BOX ASSEMBLY
28	BRACKET-INSTALLATION (2)
29	WCI 58068050
30	WCI 08068046
31	SHIELD-BAKE BURNER
32	WCI 3131824
33	SHIELD-CAPILLARY BULB
34	SUPPORT, CONTROL VALVE
35	WCI 3131831
36	WCI 3131833
37	SUPPORT-REAR OVN (2)
38	WCI 08068038
39	WCI 3131839
40	CLIP,BODYSIDE
41	GROMMET
42	GROMMET MAIN TOP
43A	WCI 3131840
43	WCI 3131795
44	WCI A35049000
45	WCI 08007985
46	CHANNEL – MAIN WIRE
47	WCI 3131820
