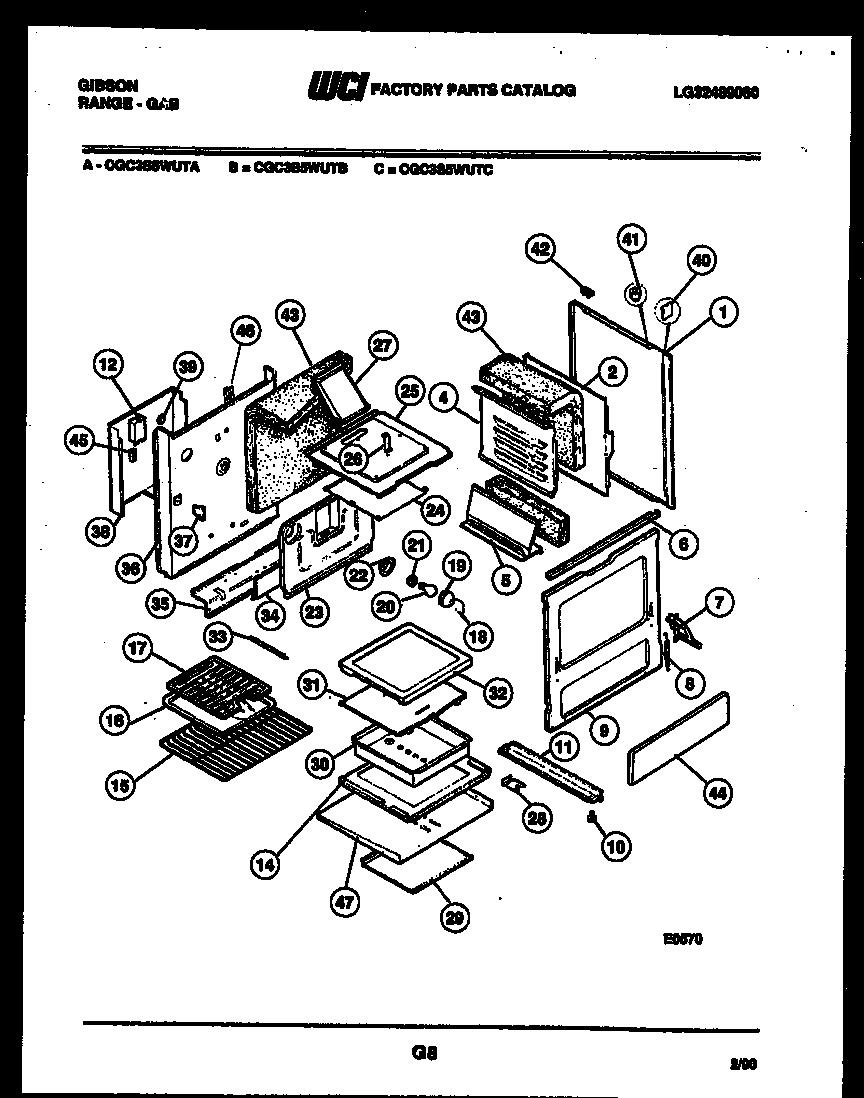

CGC3S5WUTB 06 – BODY PARTS

Products

Position	Product
1	PANEL-BODYSIDE (WHITE) (2)
2	WCI 3131794
4C	WCI 3016534
4A	LINER-RIGHT SIDE
5A	WCI 3131054
5	WCI 3131053
6	SUPPORT CONTROL PNL
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	HINGE – DOOR RH
8	SPRING (2)
9A	FRAME-FRONT
10	WCI 08008041
11	BASE RAIL
12	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
14A	LINING-OVEN BOTTOM
15	RACK-OVEN
16A	BROILER-PAN
17A	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	RETAINER-OVEN LIGHT LENS
19	5304524341 Frigidaire Lens
20	316538904 Frigidaire Oven Lamp Light
21	316116400 Frigidaire Oven Light Socket
22	WCI 3009290
23A	LINER-OVEN BACK
24	WCI 08011509
25	WCI 3131802
26	WCI 3131800
27	VENT BOX ASSEMBLY
28	BRACKET-INSTALLATION (2)
29	WCI 58068050
30	WCI 08068046
31	SHIELD-BAKE BURNER
32A	WCI 3016975
33	SHIELD-CAPILLARY BULB
34	SUPPORT, CONTROL VALVE
35	WCI 3131831
36	WCI 3131833
37	SUPPORT-REAR OVN (2)
38	WCI 08068038
39	WCI 3131839
40	CLIP,BODYSIDE
41	GROMMET
42	GROMMET MAIN TOP
43	WCI 3131795
43A	WCI 3131840
44	WCI A35049000
45	WCI 08007985
46	CHANNEL – MAIN WIRE
47	WCI 3131820
