CGC3S5WXA 05 – BODY PARTS

CGC3S5WXA 05 – BODY PARTS

Written by

in

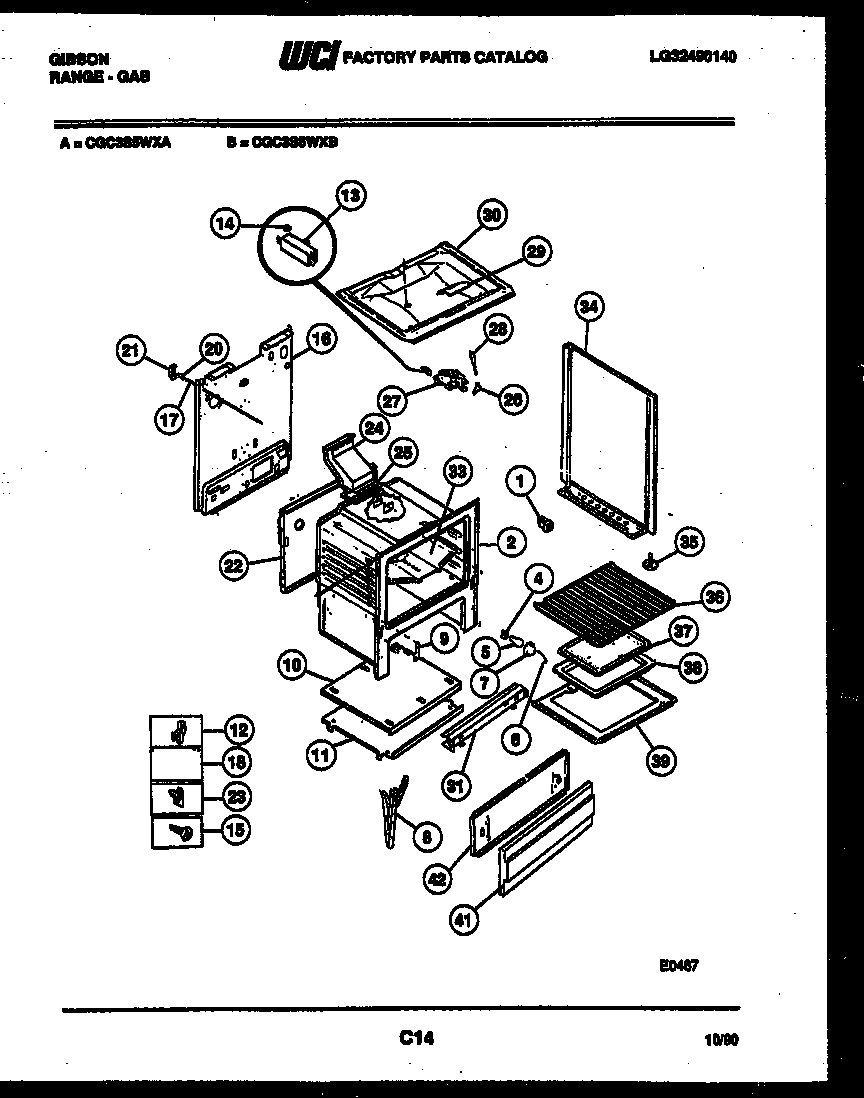

CGC3S5WXA 05 – BODY PARTS

Products

PositionProduct
*231415304515659 Frigidaire Oven Power Cord
*23140ANTI-TIP KIT (NOT ILLUSTRATED)
*23140DIAGRAM WIRING (NOT FOR PURCHASE.)
*23140SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*23140WCI 3131590
*23139WCI 3131252
*23139WCI 3018702
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8CHAN-DOOR HINGE (2)
9WCI 3131570
10WCI 3131951
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
15316282700 Frigidaire Oven Screw
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
33WCI 3200836
34APNL-BODYSIDE RH-ALMOND
34APNL-BODYSIDE RH-WHITE
34PNL-BODYSIDE LH-ALMOND
34PNL-BODYSIDE LH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39CWCI 08067961
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
39FINSULATION, OVEN TOP
39BSHIELD-LATCH
39E08067973 Frigidaire 0 Insulation
39GWCI 08068018
39DINSULATION OVEN BACK (NON-ILLUSTRATED)
41ASHIELD-OVN TOP
41PNL – DRAWER (WHITE)
41PNL – DRAWER (ALMD)
42SHIELD-PNL
