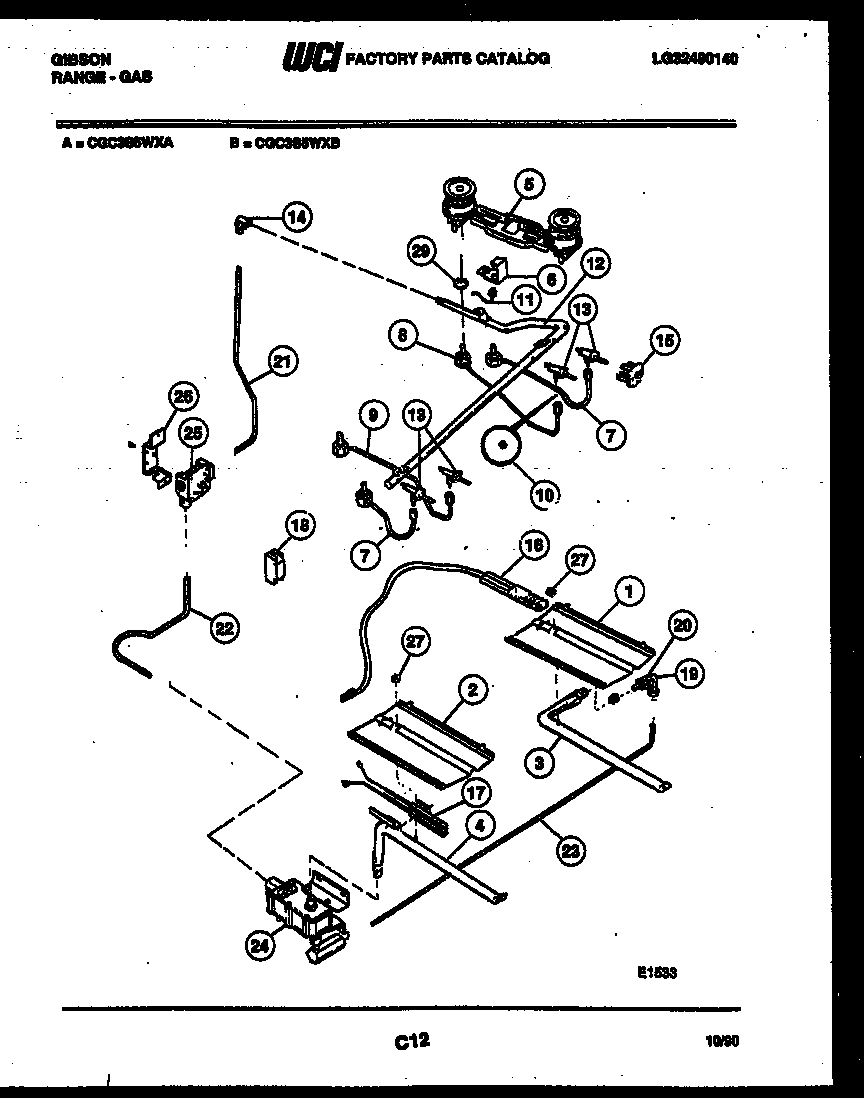

CGC3S5WXB 04 – BURNER PARTS

Products

Position	Product
*23124	BRACKET BURNER MTG
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER-TOP-DOUBLE
6	3016993 Frigidaire Oven Retainer
7	BURNER TUBE-RF & LF
8	WCI 5303011569
9	WCI 5303011570
10	FERRULE (4)
11	IGNITER-TOP BURNER, BASE, (2)
12	WCI 3018861
13	WCI 5303017542
14	ELBOW 1/2 NP TO 9/16-24
14A	NUT COMPRESSN (4)
15	WCI 5303207999
16	5303935068 Frigidaire Flat Igniter
17	5303935066 Frigidaire Oven Flat Igniter 17" Leads
18	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19	WCI 5303208640
20	NUT
21	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22	TUBE-VALVE TO REGUL
23	TUBE-VALVE TO MIXER ELBOW
24A	WASHER-BLACK
24	5303208499 Frigidaire Safety Gas Valve
25	5303935125 Frigidaire Pressure Regulator
26	316091600 Frigidaire Oven Bracket
27	5303013272 Frigidaire Oven Nut
28	WCI 08068015
29	NUT, SPECIAL
