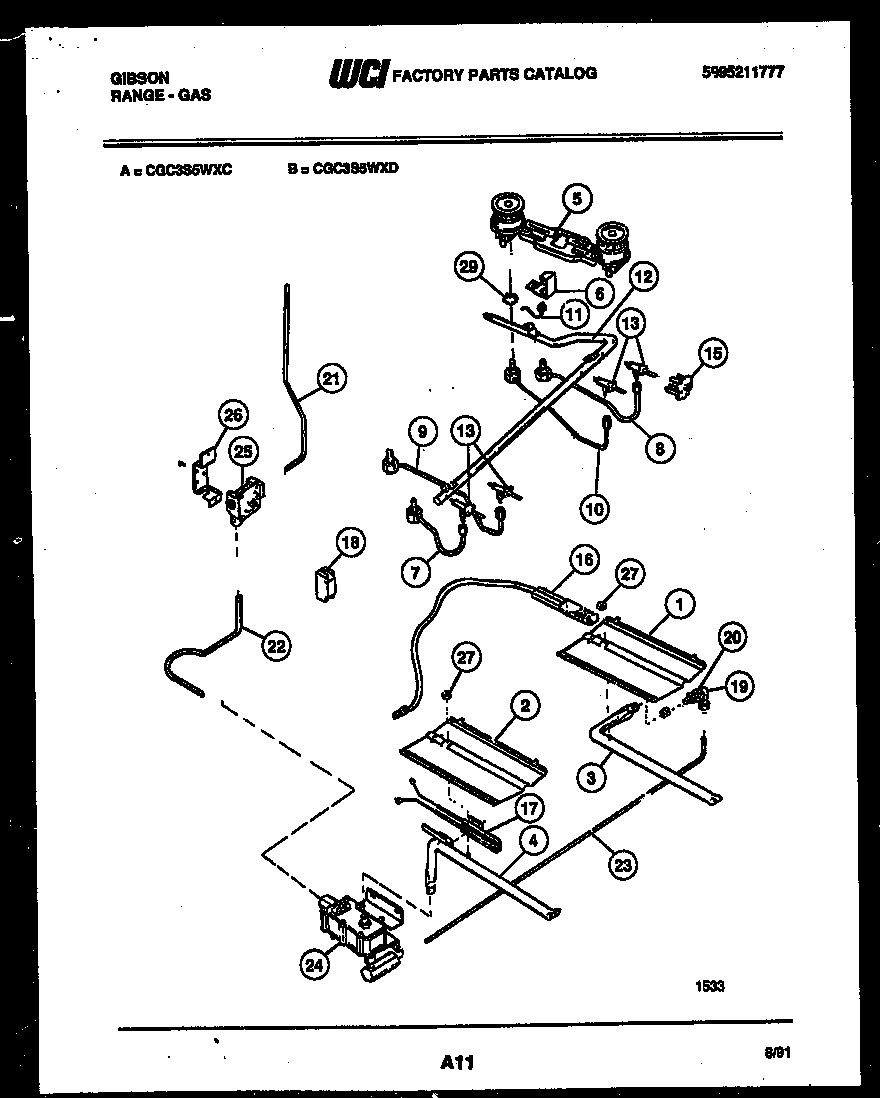

CGC3S5WXD 04 – BURNER PARTS

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER-TOP-DOUBLE
6	3016993 Frigidaire Oven Retainer
7	TUBE-BURNER, LF
8	TUBE-BURNER, RF
9	TUBE-BURNER, LR
10	TUBE-BURNER, RR
11	IGNITER-TOP BURNER, BASE, (2)
12	WCI 5303271375
13	VALVE-TOP 2 POS (4)
15	IGN.-SWITCH
16	5303935068 Frigidaire Flat Igniter
17	5303935066 Frigidaire Oven Flat Igniter 17" Leads
18	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19	WCI 08067979
20	NUT
21	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22	TUBE-VALVE TO REGUL
23	TUBE-VALVE TO MIXER ELBOW
24A	WASHER-BLACK
24	5303208499 Frigidaire Safety Gas Valve
25	5303935125 Frigidaire Pressure Regulator
26	316091600 Frigidaire Oven Bracket
27	5303013272 Frigidaire Oven Nut
27A	WCI 08068015
29	NUT, SPECIAL
