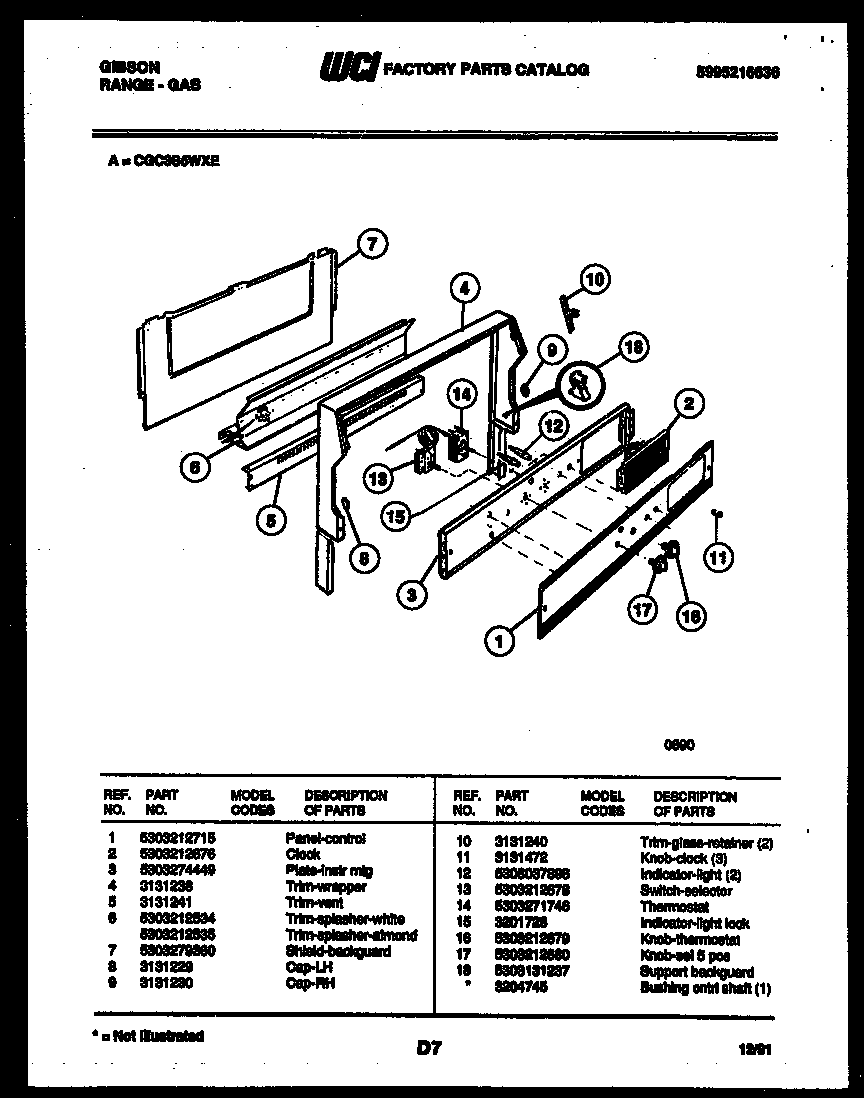

CGC3S5WXE 02 – BACKGUARD

Products

PositionProduct
*40370WCI 3204745
1PANEL-CONTROL, GLASS
2CLOCK/TIMER, ANALOG 3 STEM
3PLATE-INSTRUMENT
4WCI 3131238
5WCI 3131241
6TRIM – SLASHER – WHITE
6TRIM – SLASHER – ALMOND
7WCI 5303279360
8WCI 3131229
9SHIELD-REAR WALL
10TRIM-GLASS RTNR. LH & RH
11KNOB-CLOCK
12WCI 5308037896
13SWITCH SELECTOR 5 POS
14THERMOSTAT-BAKE
15INDICATOR LIGHT-LOCK (1)
16WCI 5303212679
17KNOB-SELECTOR
18SUPPORT-BACKGUARD,(2)
