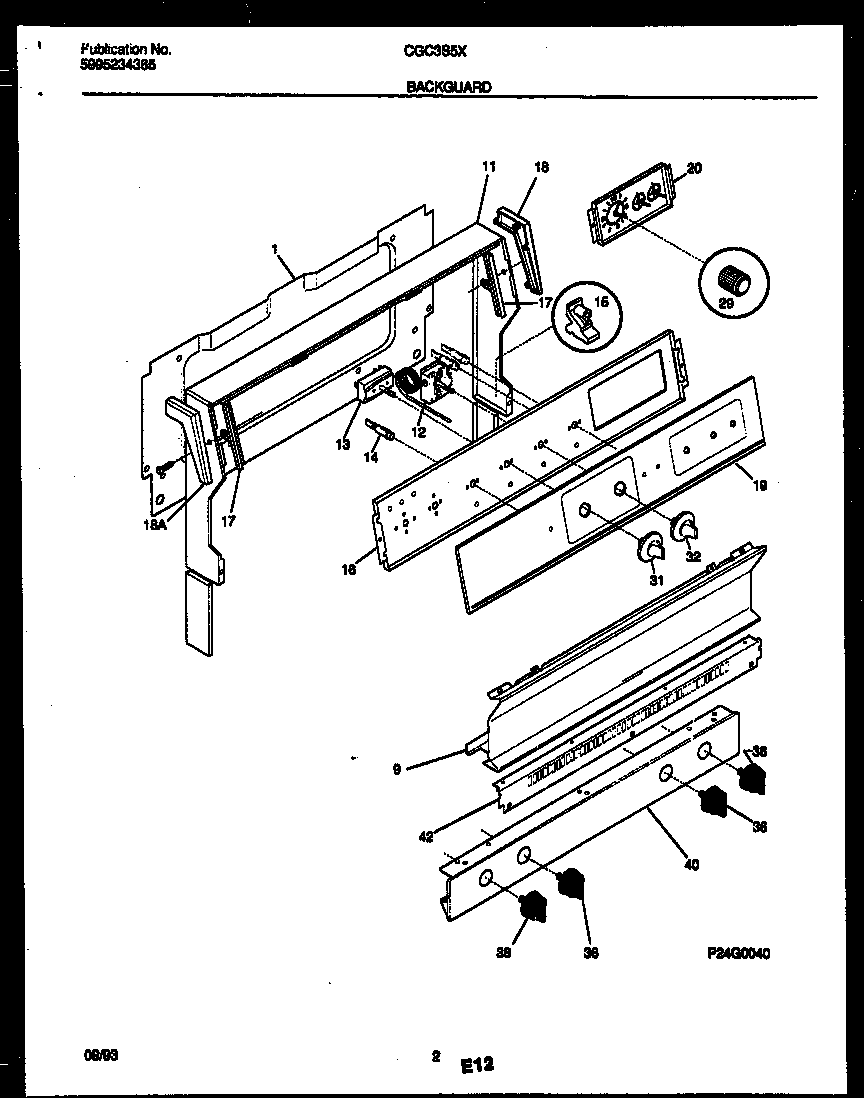

CGC3S5WXG 02 – BACKGUARD

CGC3S5WXG 02 – BACKGUARD

Written by

in

CGC3S5WXG 02 – BACKGUARD

Products

PositionProduct
*64856WCI 3204745
1SHIELD-BACKGUARD, REAR WALL
9TRIM-SPLASHER, WHITE
11WCI 3131238
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14WCI 5308037896
14AINDICATOR LIGHT-LOCK (1)
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RTNR. LH & RH
18AWCI 3131229
18SHIELD-REAR WALL
19PANEL-CONTROL, GLASS
20CLOCK/TIMER, ANALOG 3 STEM
29KNOB-CLOCK
31KNOB-SELECTOR
32WCI 5303212679
36WCI 5303212557
40WCI 5303208910
42WCI 3131241
