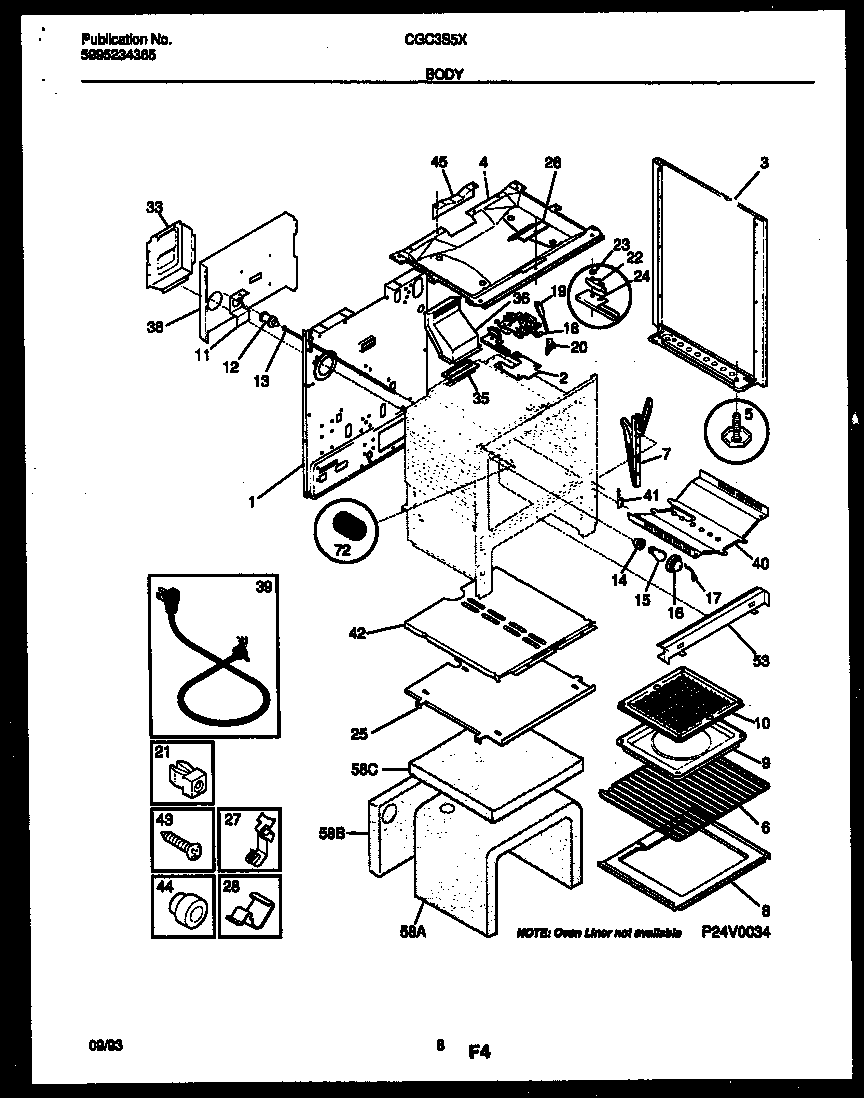

CGC3S5WXG 05 – BODY PARTS

CGC3S5WXG 05 – BODY PARTS

Written by

in

CGC3S5WXG 05 – BODY PARTS

Products

PositionProduct
*64880SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*64880ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*64881FASTENER-EDGE MTG (NOT ILLUSTRATED)
*64881WCI 08067961
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
72COVER-LIGHT/SWITCH ROD
