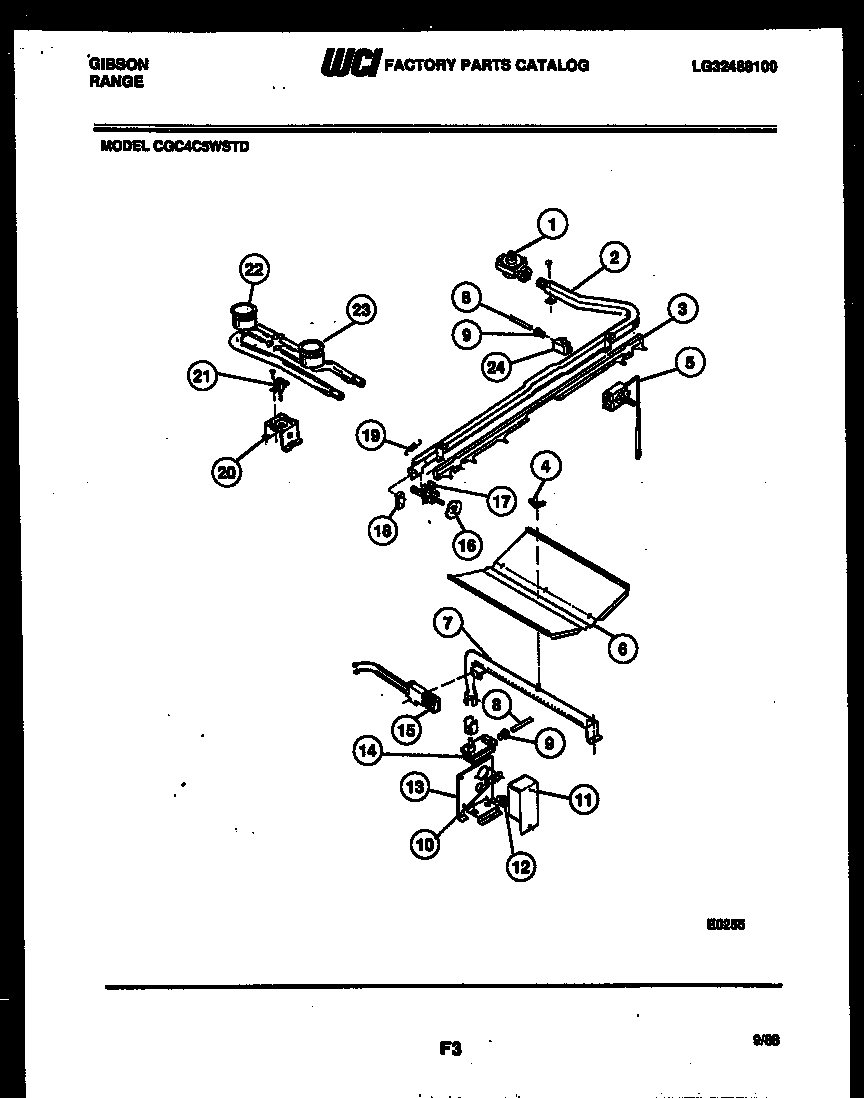

CGC4C5WSTD 06 – BURNER PARTS

Products

Position	Product
*14207	CLIP CAPILLARY (2)
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08013906
3	WCI A66018000
4	WING NUT
5	WCI AP367066
6	BAFFLE-OVEN BURNER
7	BURNER
8	TUBING-OVEN SPLY 3/8
9	BUT – 3/8 LOXIT
10	TERMINAL BLOCK
11	VALVE COVER
12	WCI AP074001
13	SUPPORT-OVEN SAFETY VALVE
14	WCI AP385181
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	WCI A22002000
17	VALVE – TOP BURNER (4)
18	WCI AP351123
19	WCI 3131096
20	WCI A74099000
21	IGNITER 36“
22	BURNER-REAR TOP
23	BURNER-FRONT TOP
24	WCI 3131099
