CGC4C6DXD 06 – BURNERS

CGC4C6DXD 06 – BURNERS

Written by

in

CGC4C6DXD 06 – BURNERS

Products

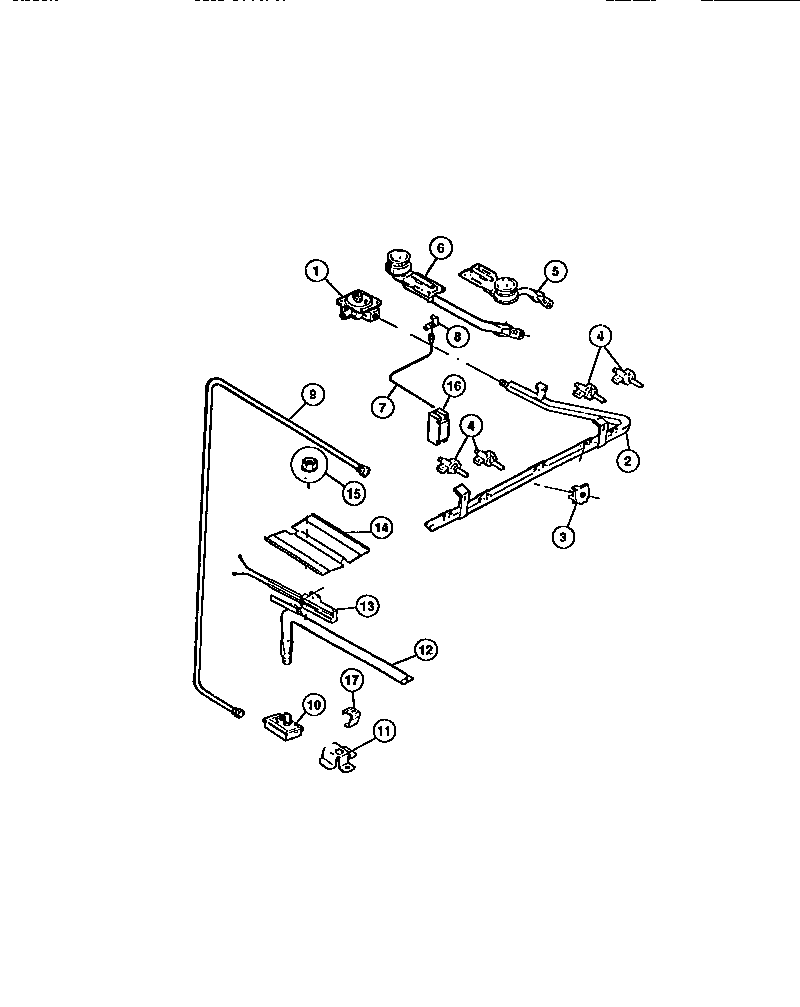

PositionProduct
1CONTROL REGUL
2WCI 5303272435
3IGN.-SWITCH
4VALVE – TOP 2 POS (4)
4A316048200 Frigidaire Oven Screw
5WCI 5204958
65304506426 Frigidaire Oven Top Rear Burner
7IGNITER-TOP BURNER, BASE, (2)
83016993 Frigidaire Oven Retainer
9WCI 3203458
103203459 Frigidaire Oven Range Dual Gas Safety Valve
11BRKT.-VALVE
12WCI 3131439
135303935066 Frigidaire Oven Flat Igniter 17" Leads
14WCI 3203265
155303013272 Frigidaire Oven Nut
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17WCI 3018603
