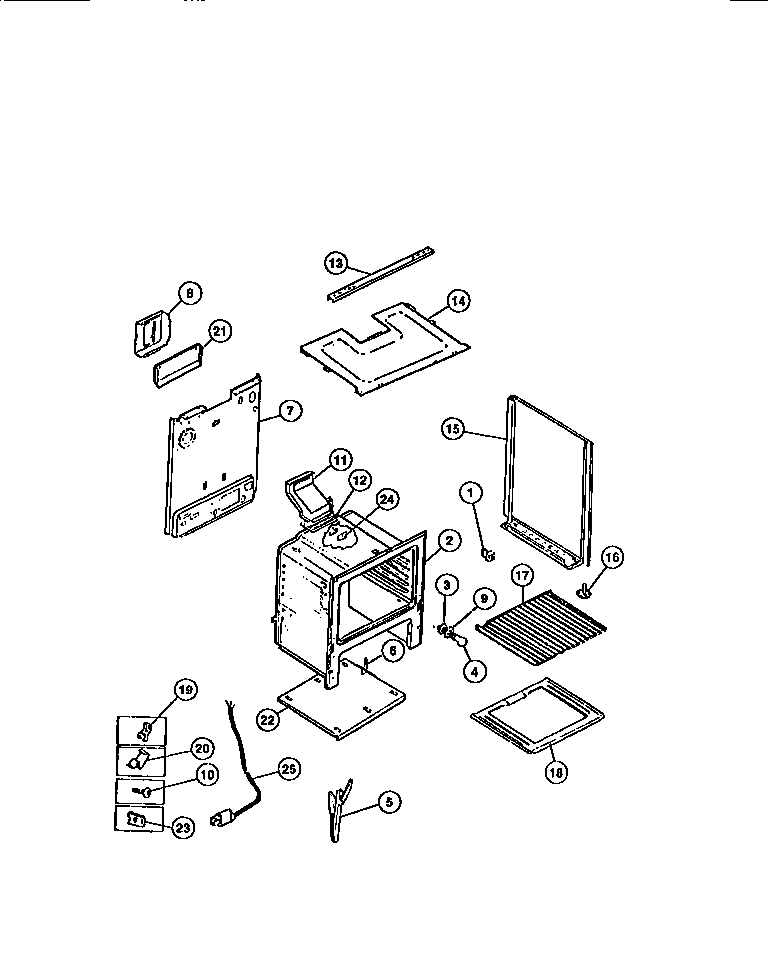

CGC4C6DXE 07 – BODY

Products

Position	Product
*18929	SHIELD-TOP (NON-ILLUSTRATED)
*18922	WCI 08067961
*18925	ANTI-TIP KIT (NOT ILLUSTRATED)
*18926	COVER-POWER CORD, (NON-ILLUSTRATED)
*18927	COVER-OVEN FRONT
*18921	DIAGRAM, WIRING (NOT FOR PURCHASE)
*18924	316064600 Frigidaire Oven Support
*18928	SHIELD-FLUE, (NON-ILLUSTRATED)
*18923	3131903 Frigidaire Door/Drawer Bumper
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	Hinge,oven door ,(2)
6	WCI 3131570
7	WCI 3203082
8	WCI 3131660
9	WCI 5303271606
10	316282700 Frigidaire Oven Screw
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	CHANNEL-BURNER BOX
14	BURNER BOX BOTTOM
15	WCI 5303269543
15	WCI 5303269545
16	SCREW-LEVELING
17	316067902 Frigidaire Oven Rack
18	BTTM-OVEN
18	INSUL – OVEN BACK (NON-ILLUSTRATED)
18	INSULATION, OVEN WRAPPER
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21	WCI 5303280614
22	WCI 5303270160
23	3203010 Frigidaire Clip
24	COVER-IGNITOR
25	5304515659 Frigidaire Oven Power Cord
