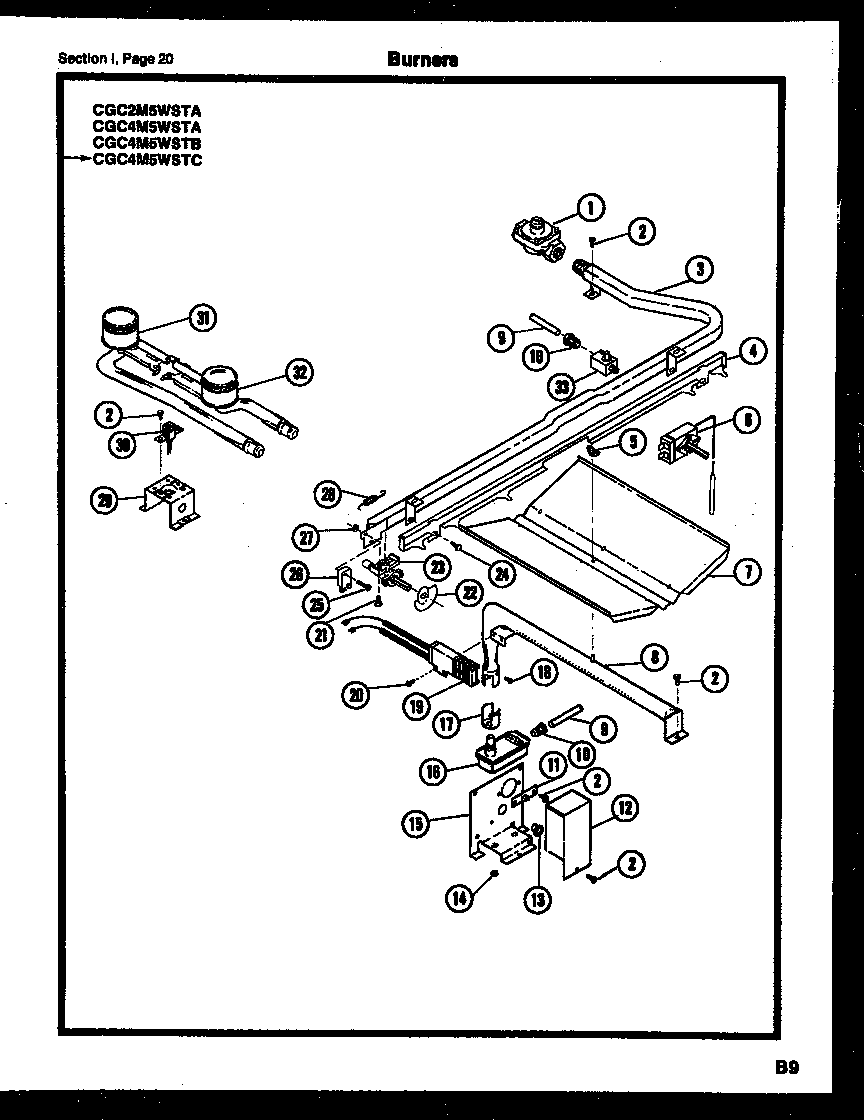

CGC4M5WSTB 14 – BURNERS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI AP051056
3	WCI AP245172
4	WCI A66018000
5	WING NUT
6A	CLIP, CAP. TUBE
6	WCI AP367066
7	BAFFLE
8	BURNER
9	WCI AP377129
10	BUT – 3/8 LOXIT
11	TERMINAL BLOCK
12	VALVE COVER
13	WCI AP074001
14	WCI AP265008
15	SUPPORT
16	WCI AP385181
17	SHUTTER
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	SCREW
21	WCI AP051027
22	WCI A22002000
23	WCI AP385194
24	WCI AP051065
25	SCREW
26	WCI AP351123
27	NUT
28	WCI AP339058
29	WCI A74069000
30	IGNITER – TOP BURNER RT. (NON-ILLUSTRATED)
30A	TOP BURNER LT.
31	WCI AP072031
32	WCI AP072030
33	VALVE
