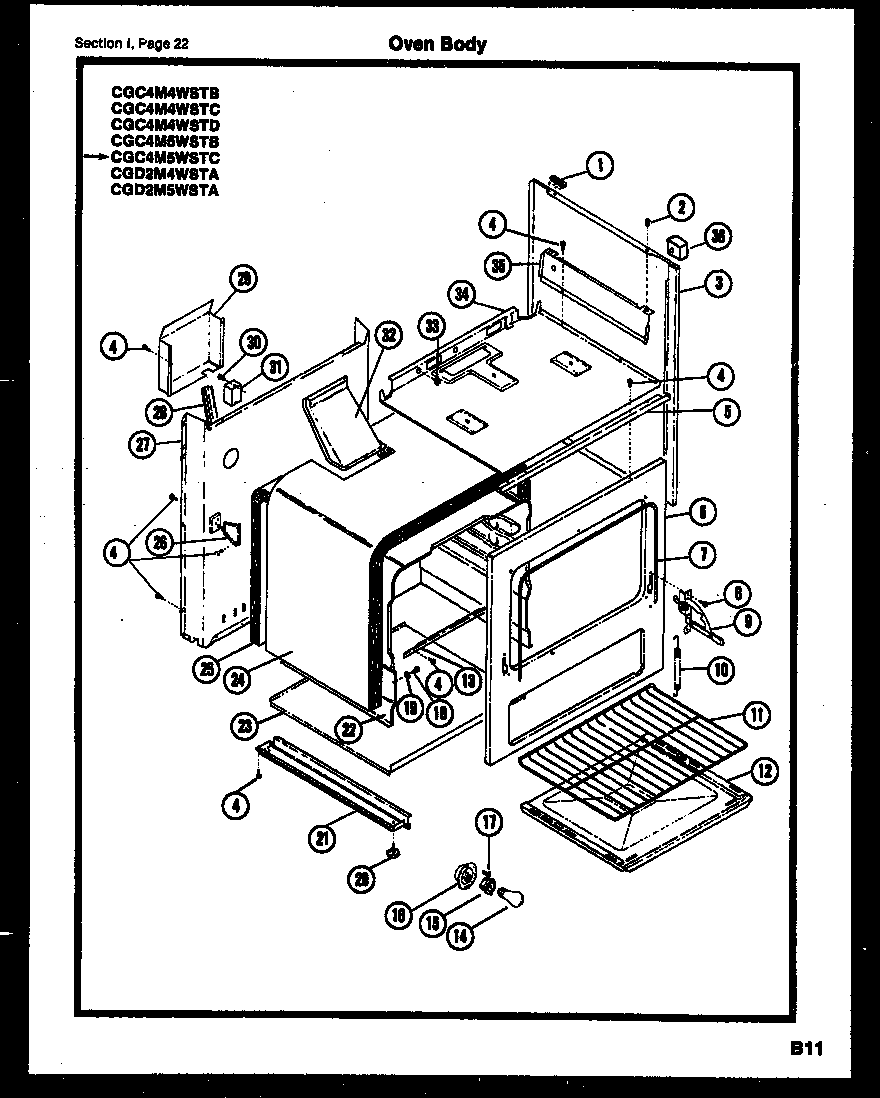

CGC4M5WSTB 15 – OVEN BODY

Products

Position	Product
*21440	OWNERS USE AND CARE BOOK
1	WCI AP172004
2	WCI AP172002
3	WCI A64013000
4	WCI AP051056
5	WCI A74076000
6	WCI A98334001
7	WCI AP326052
9	WCI A96068000
9A	318348801 Frigidaire Oven Left Side Door Hinge
10	SPRING
11	WCI AP301046
12	WCI A51103003
13	SUPPORT, BTM
14	316538904 Frigidaire Oven Lamp Light
15	316116400 Frigidaire Oven Light Socket
16	WCI AP118001
17	5304500008 Frigidaire Oven Screw
18	WCI AP051045
19	WCI AP391021
20	WCI AP059009
21	BASE RAIL
22B	WCI A51149002
22C	WCI A51162000
22	WCI A51130002
22A	WCI A51131002
23	PANEL, BOTTOM
24	WCI AP207065
25	WCI AP207068
26	WCI A74060000
27	VENT BOX
28	CHANNEL – MAIN BACK WIRE
29	COVER, MODULE
31	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
32	WCI A92049000
33	WCI AP074001
34	WCI A98409000
35A	HEAT SHIELD, LH (NON-ILLUSTRATED)
35	HEAT SHIELD-RH
36	CORNER PAD – END PANELS (2)
