CGC4M6DXF 07 – BODY

Products

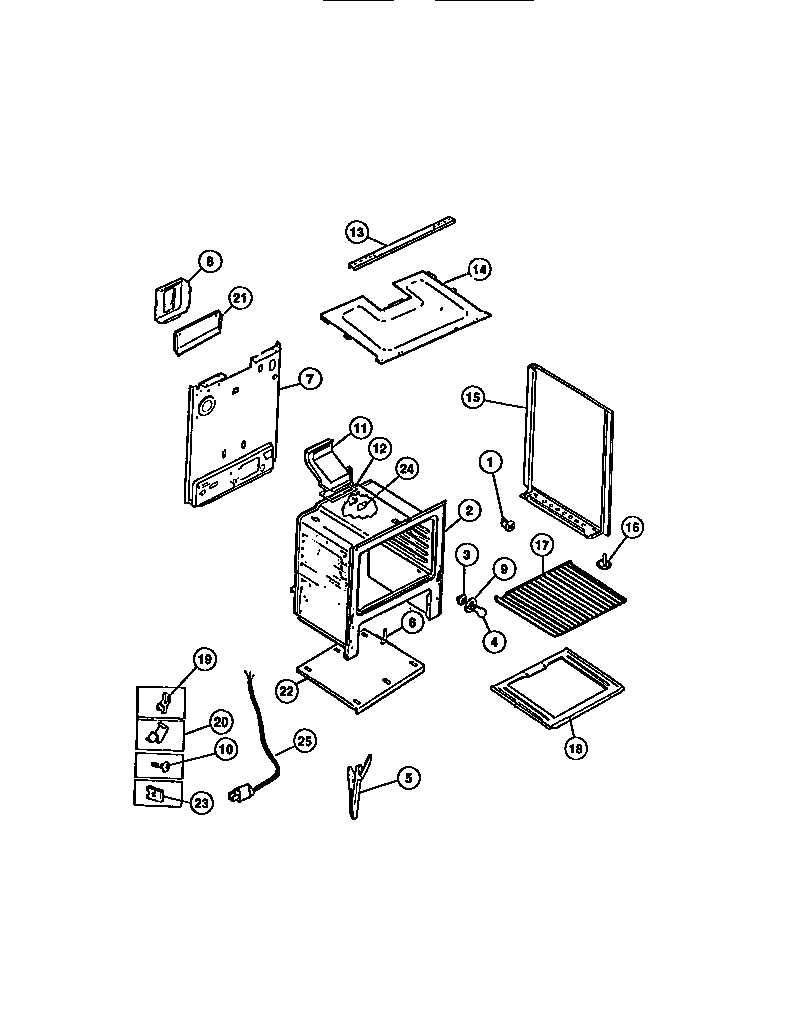

PositionProduct
*48209SHIELD-TOP (NON-ILLUSTRATED)
*482033131903 Frigidaire Door/Drawer Bumper
*48206COVER-POWER CORD, (NON-ILLUSTRATED)
*48200WCI 08010570
*48202WCI 08067961
*48207COVER-OVEN FRONT
*48201DIAGRAM, WIRING (NOT FOR PURCHASE)
*48208SHIELD-FLUE, (NON-ILLUSTRATED)
*48204316064600 Frigidaire Oven Support
*48205ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5Hinge,oven door ,(2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15AWCI 5303269545
15WCI 5303269543
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18AINSULATION, OVEN WRAPPER
18BTTM-OVEN
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
19WCI 08010556
20316539800 Frigidaire Oven Retainer
21WCI 5303280614
22WCI 5303270160
233203010 Frigidaire Clip
24COVER-IGNITOR
255304515659 Frigidaire Oven Power Cord
