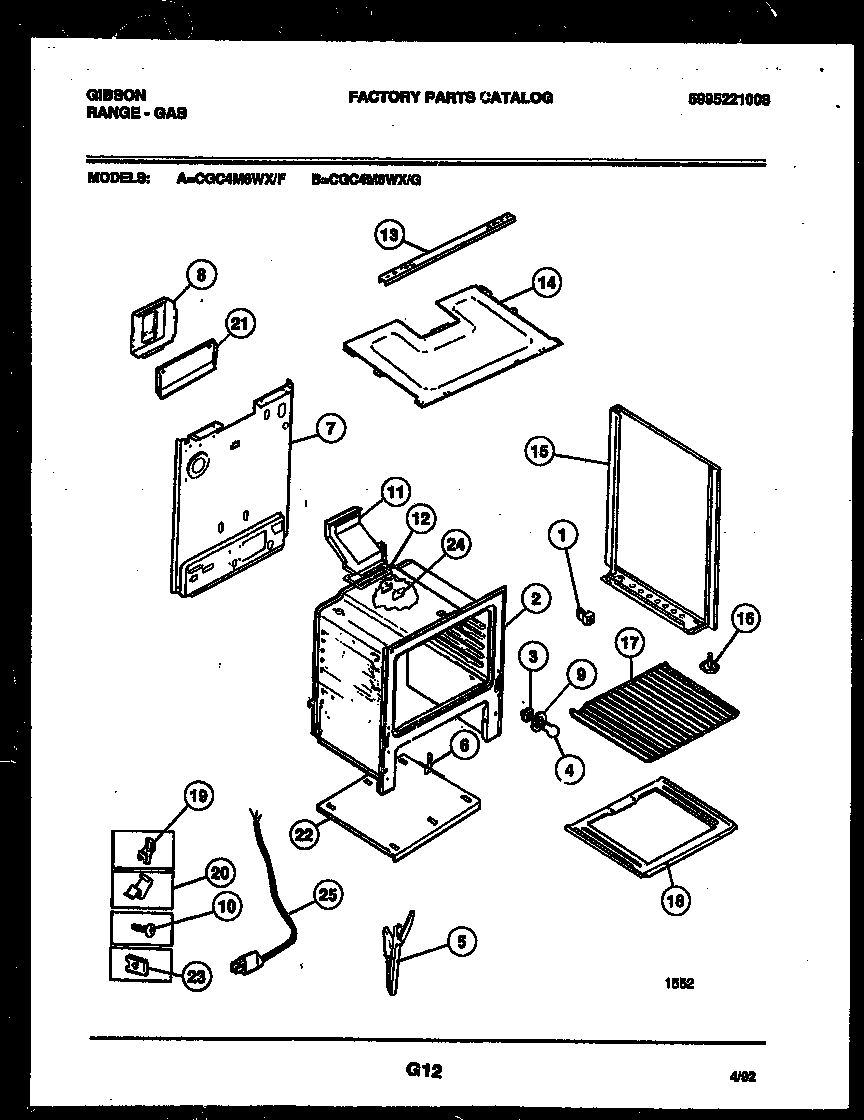

CGC4M6WXG 07 – BODY PARTS

Products

PositionProduct
*51115WCI 08010570
*51115DIAGRAM, WIRING (NOT FOR PURCHASE)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5Hinge,oven door ,(2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15PNL-B/S-RH-WHITE
15AWCI 5303269545
15APNL-B/S-LH-WHITE
15WCI 5303269543
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18AINSULATION, OVEN WRAPPER
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18BTTM-OVEN
19WCI 08010556
19AWCI 08067961
20316539800 Frigidaire Oven Retainer
21A3131903 Frigidaire Door/Drawer Bumper
21B316064600 Frigidaire Oven Support
21WCI 5303280614
22AANTI-TIP KIT (NOT ILLUSTRATED)
22WCI 5303270160
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
23ACOVER-OVEN FRONT
233203010 Frigidaire Clip
24COVER-IGNITOR
24ASHIELD-FLUE, (NON-ILLUSTRATED)
24BSHIELD-TOP (NON-ILLUSTRATED)
255304515659 Frigidaire Oven Power Cord
