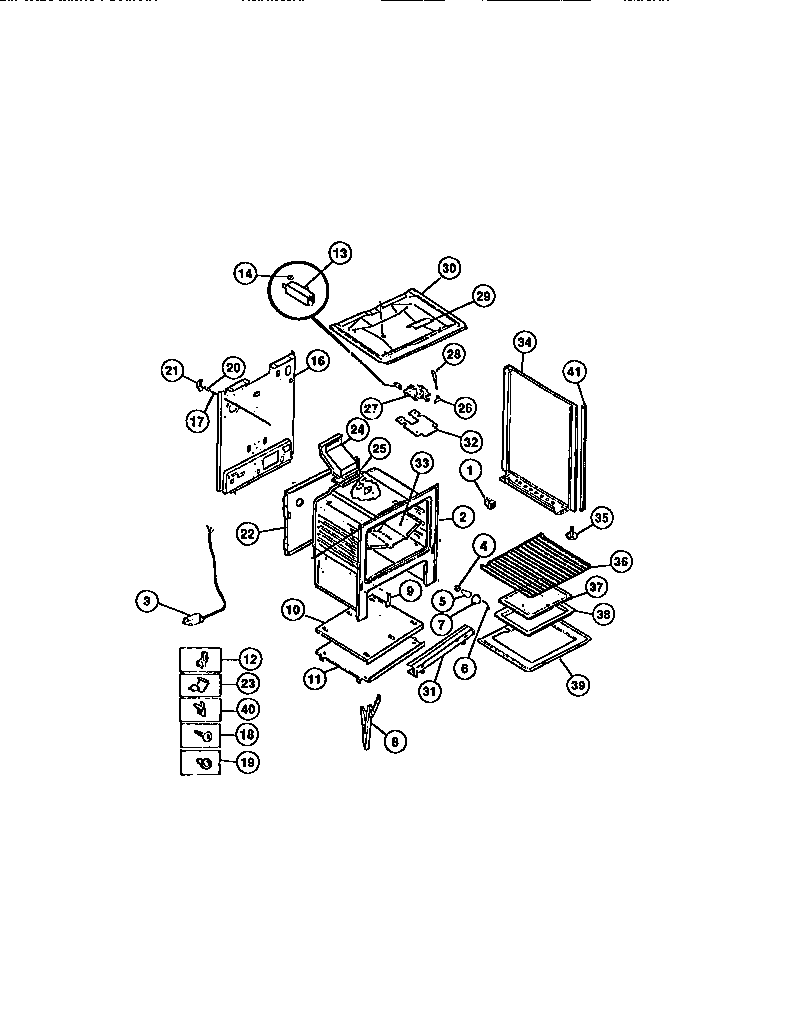

CGC4S8DXC 06 – BODY

CGC4S8DXC 06 – BODY

Written by

in

CGC4S8DXC 06 – BODY

Products

PositionProduct
*80363WCI 19100180305
1SPACER-BODYSIDE, (8)
35304515659 Frigidaire Oven Power Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 08067992
11WCI 3131313
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34AWCI 5303269545
34WCI 5303269543
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39D08067973 Frigidaire 0 Insulation
39GINSULATION, OVEN WRAPPER
39A316064600 Frigidaire Oven Support
39EINSULATION, OVEN TOP
39FSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39BWCI 08067961
39BTTM-OVEN
40BWCI 5303269502
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
40DANTI-TIP KIT (NOT ILLUSTRATED)
40CWCI 08068018
40ASHIELD-OVN TOP
41TRIM – VERTICAL B/S (2)
