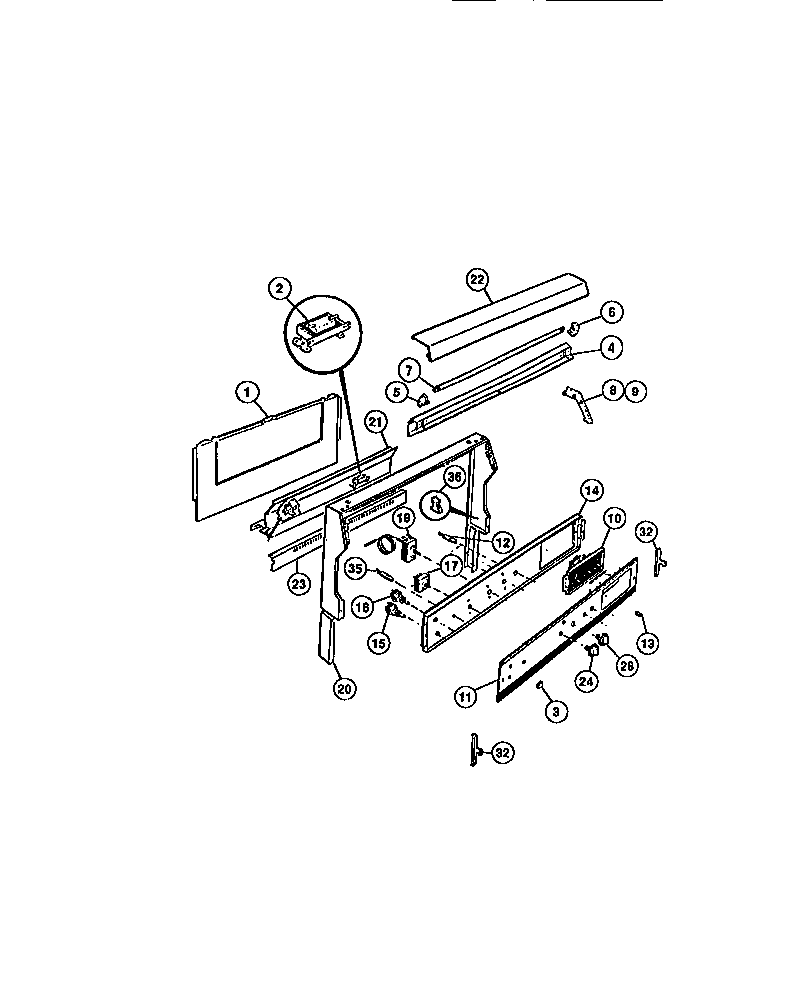

CGC4S8DXD 02 – BACKGUARD

CGC4S8DXD 02 – BACKGUARD

Written by

in

CGC4S8DXD 02 – BACKGUARD

Products

PositionProduct
*80360WCI 3018820
*80361SPACER-FL LT MTG
1SHIELD-BACKGUARD,REAR WALL
2WCI 5303051115
3WCI 5303011507
4WCI 3131277
5RECEPTACLE-FLU LT LH
6RECEPTACLE-FLU LT RH
7BULB-FLUOR
8WCI 3131267
9WCI 3131268
10CLOCK/TIMER, ANALOG 3 STEM
11WCI 5303212677
12LIGHT – IND 125 V (2)
13KNOB-CLOCK
14PLATE – INST MOUNTING
15WCI 5303200479
16SWITCH FL LIGHT
17SWITCH SELECTOR 5 POS
18THERMOSTAT-BAKE
20WCI 3131280
21TRIM – SLASHER – ALMOND
22WCI 5303212668
23WCI 3131241
24WCI 5303212679
28KNOB-SELECTOR
32TRIM-GLASS RTNR. LH & RH
35AWCI 3204745
35INDICATOR LIGHT-LOCK (1)
36SUPPORT-BACKGUARD,(2)
