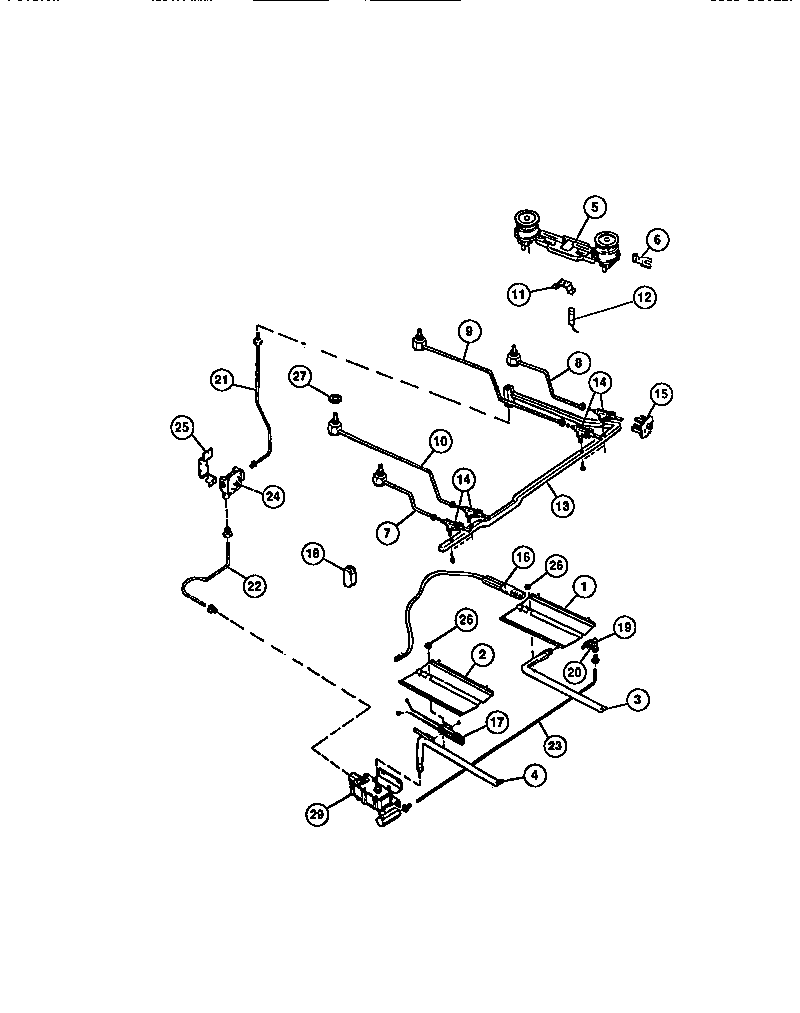

CGC4S8DXE 05 – BURNERS

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
63016993 Frigidaire Oven Retainer
7TUBE-BURNER, LF
8TUBE-BURNER, RF
9TUBE-BURNER, RR
10TUBE-BURNER, LR
11BRACKET BURNER MTG
12IGNITER-TOP BURNER, BASE, (2)
13WCI 5303271375
14VALVE-TOP 2 POS (4)
14316048200 Frigidaire Oven Screw
15SWITCH-IGNITER (4)
165303935068 Frigidaire Flat Igniter
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19WCI 08067979
21TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22TUBE-VALVE TO REGUL
23TUBE-VALVE TO MIXER ELBOW
245303935125 Frigidaire Pressure Regulator
25316091600 Frigidaire Oven Bracket
265303013272 Frigidaire Oven Nut
27NUT, SPECIAL
295303208499 Frigidaire Safety Gas Valve
