CGC4S8DXF 02 – BACKGUARD

CGC4S8DXF 02 – BACKGUARD

Written by

in

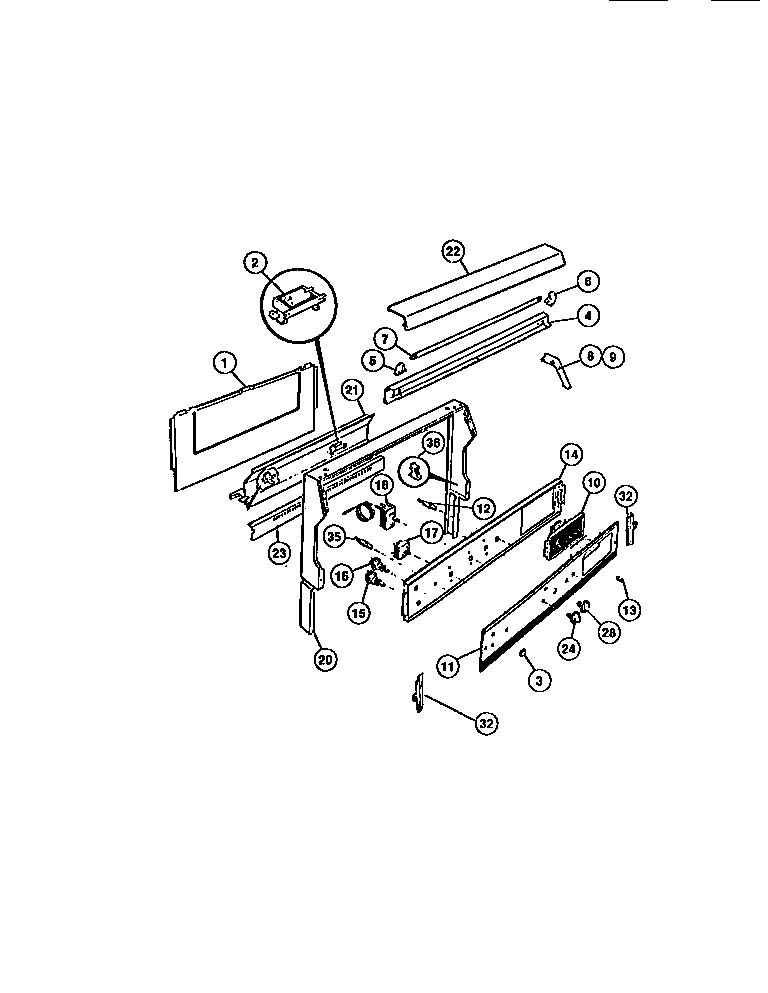

CGC4S8DXF 02 – BACKGUARD

Products

PositionProduct
*03081SPACER-FL LT MTG
1SHIELD-BACKGUARD, REAR WALL
2WCI 5303051115
3WCI 5303011507
4WCI 3131277
5RECEPTACLE-FLU LT LH
6RECEPTACLE-FLU LT RH
7BULB-FLUOR
8WCI 3131267
9WCI 3131268
10CLOCK/TIMER, ANALOG 3 STEM
11WCI 5303212677
12LIGHT – IND 125 V (2)
13KNOB-CLOCK
14WCI 316042601
15WCI 5303200479
16SWITCH FL LIGHT
17SWITCH SELECTOR 5 POS
18THERMOSTAT-BAKE
20WCI 3131280
21TRIM-SPLASHER, ALMOND
22WCI 5303212668
23WCI 3131241
24WCI 5303212679
28KNOB-SELECTOR
32TRIM-GLASS RTNR. LH & RH
35WCI 3204745
35INDICATOR LIGHT-LOCK (1)
36SUPPORT-BACKGUARD,(2)
