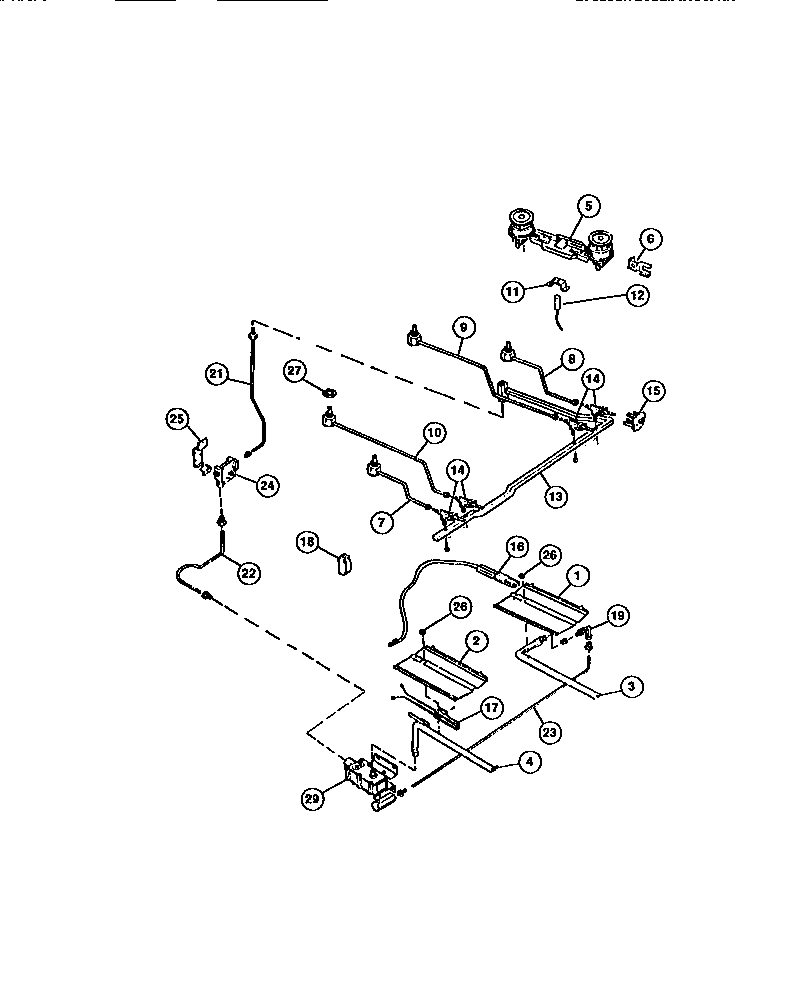

CGC4S8DXF 05 – BURNERS

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER-TOP-DOUBLE
6	3016993 Frigidaire Oven Retainer
7	WCI 5303283666
8	WCI 5303283665
9	WCI 5303283667
10	WCI 5303283668
11	BRACKET BURNER MTG
12	IGNITER-TOP BURNER, BASE, (2)
13	WCI 5303271375
14	VALVE, TOP, 2 POS, (4)
15	WCI 316032001
16	5303935068 Frigidaire Flat Igniter
17	5303935066 Frigidaire Oven Flat Igniter 17" Leads
18	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19	WCI 08067979
21	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22	TUBE-VALVE TO REGUL
23	TUBE-VALVE TO MIXER ELBOW
24	5303935125 Frigidaire Pressure Regulator
25	316091600 Frigidaire Oven Bracket
26	5303013272 Frigidaire Oven Nut
27	NUT, SPECIAL
29	5303208499 Frigidaire Safety Gas Valve
