CGC4S8DXF 06 – BODY

CGC4S8DXF 06 – BODY

Written by

in

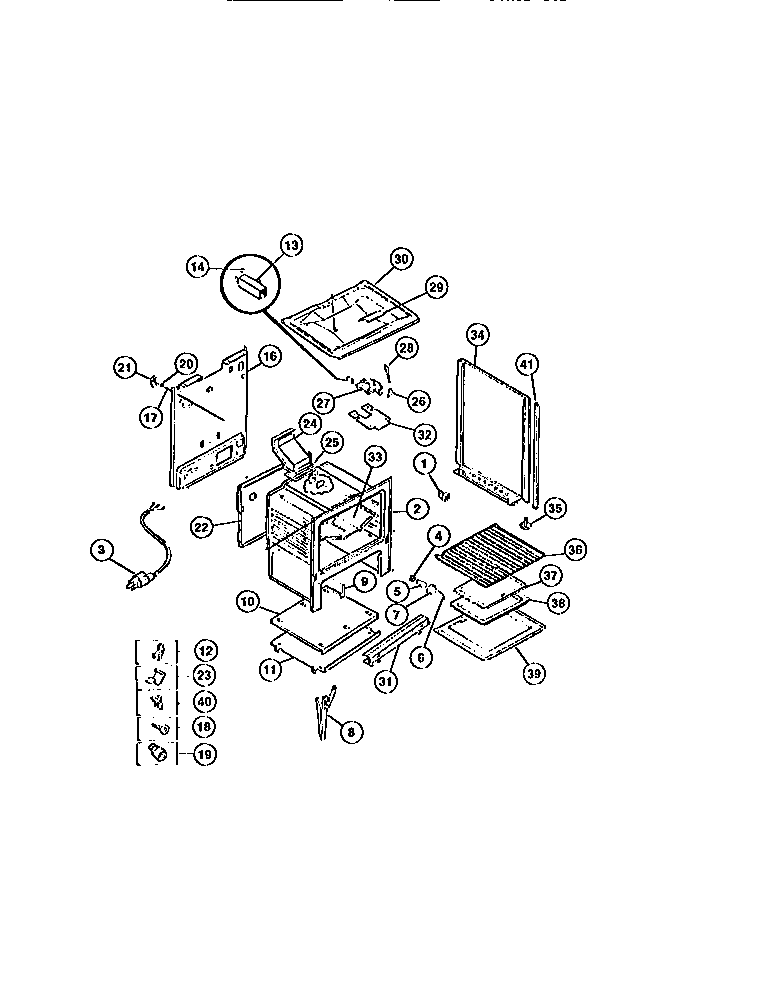

CGC4S8DXF 06 – BODY

Products

PositionProduct
*03090INSULATION, OVEN WRAPPER
*03092SHIELD, REAR WALL
*03089SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*03085WCI 08067961
*03086INSULATION OVEN BACK (NON-ILLUSTRATED)
*03088INSULATION, OVEN TOP
*0308708067973 Frigidaire 0 Insulation
*03082WCI 19100180305
*03091SHIELD-OVN TOP
*03084WCI 08013188
*03083SHIELD-LATCH (NON-ILLUSTRATED)
*03093WCI 08068018
*03094ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
35304515659 Frigidaire Oven Power Cord
5316538904 Frigidaire Oven Lamp Light
6RETAINER-GLASS
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10SHIELD-HEAT UPPER
11WCI 3131313
11WCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14STUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 316014301
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34WCI 5303269543
34WCI 5303269545
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39316064600 Frigidaire Oven Support
39BTTM-OVEN
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
41TRIM – VERTICAL B/S (2)
