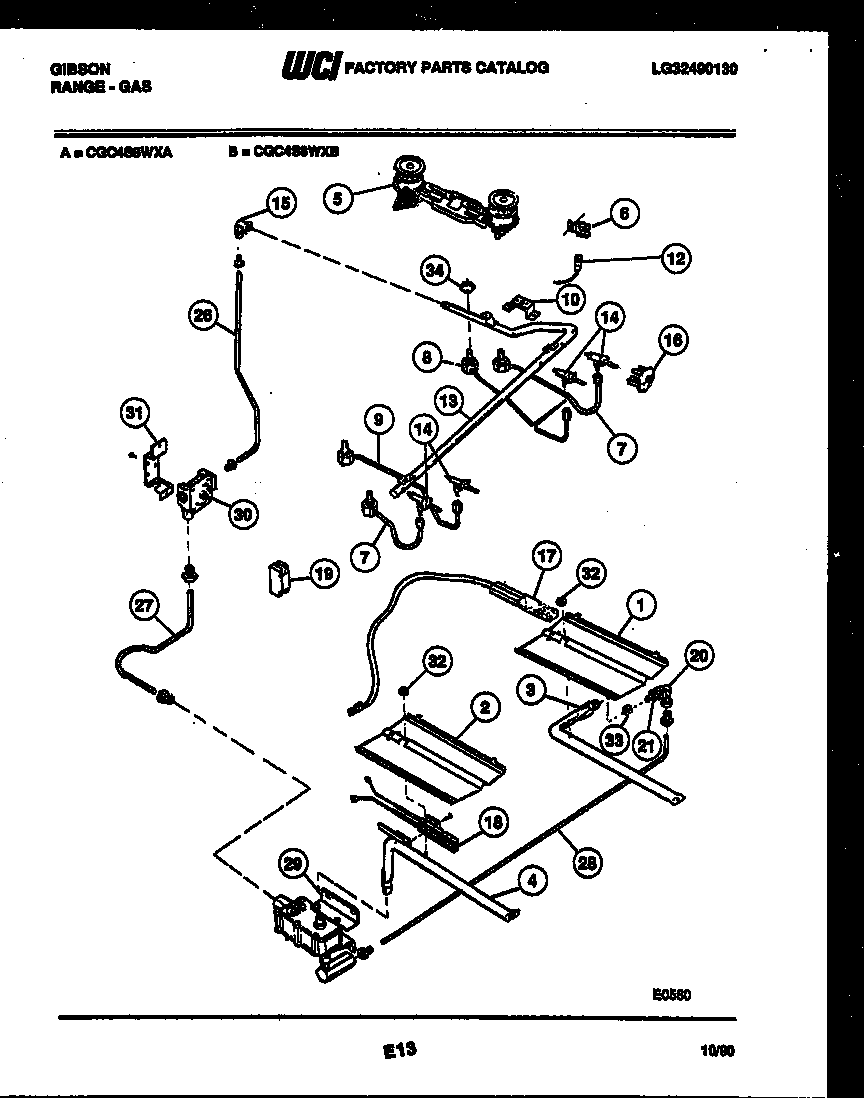

CGC4S8WXB 05 – BURNER PARTS

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER-TOP-DOUBLE
6	3016993 Frigidaire Oven Retainer
7	BURNER TUBE-RF & LF
8	WCI 5303011569
9	WCI 5303011570
10	BRACKET BURNER MTG
12	IGNITER-TOP BURNER, BASE, (2)
13	WCI 3018861
14	WCI 5303017542
15	ELBOW 1/2 NP TO 9/16-24
15A	NUT COMPRESSN (4)
16	WCI 5303207999
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 5303208640
26	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
27	TUBE-VALVE TO REGUL
28	TUBE-VALVE TO MIXER ELBOW
29	5303208499 Frigidaire Safety Gas Valve
30	5303935125 Frigidaire Pressure Regulator
31	316091600 Frigidaire Oven Bracket
32	5303013272 Frigidaire Oven Nut
33	WCI 08068015
34	NUT, SPECIAL
