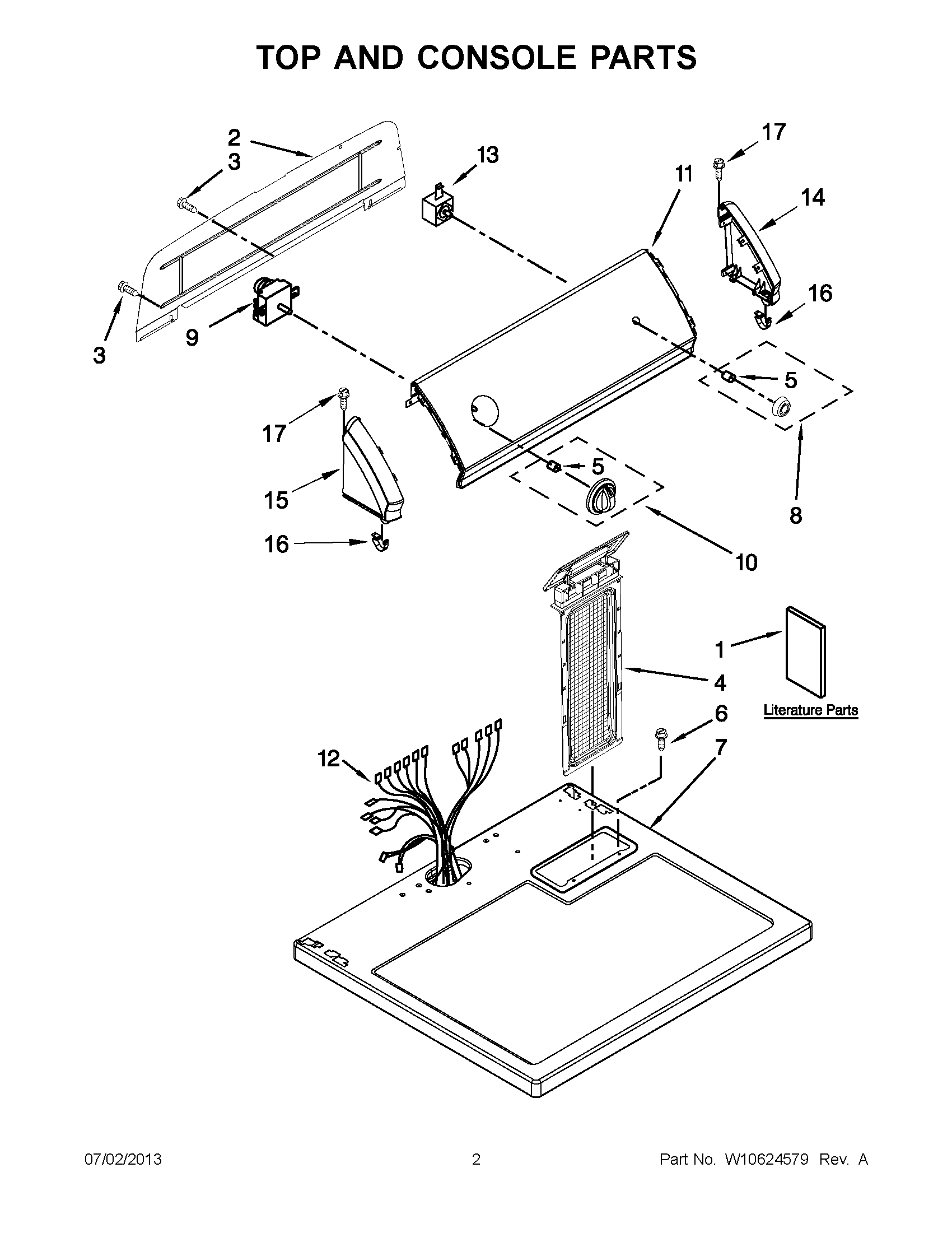

CGD126SBW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
2W10103406 Whirlpool Rear Panel
3WP693995 Whirlpool Screw
4WPW10717210 Whirlpool Dryer Lint Screen Filter
5WP8536939 Whirlpool Spring Clip
6W11693756 Whirlpool Screw Assembly
7WP8563663 Whirlpool Top Assembly
8W10317459 Whirlpool Knob
9WP3977678 Whirlpool Timer Assembly
10W10317457 Whirlpool Knob
11PANEL, CONTROL
128299877 Whirlpool Wire Harness
13WP3977456 Whirlpool Start Switch
14WP8559501 Whirlpool Endcap
15WP8559502 Whirlpool Endcap Assembly
16WP8312709 Whirlpool Endcap Clip
17WP90767 Whirlpool Screw
