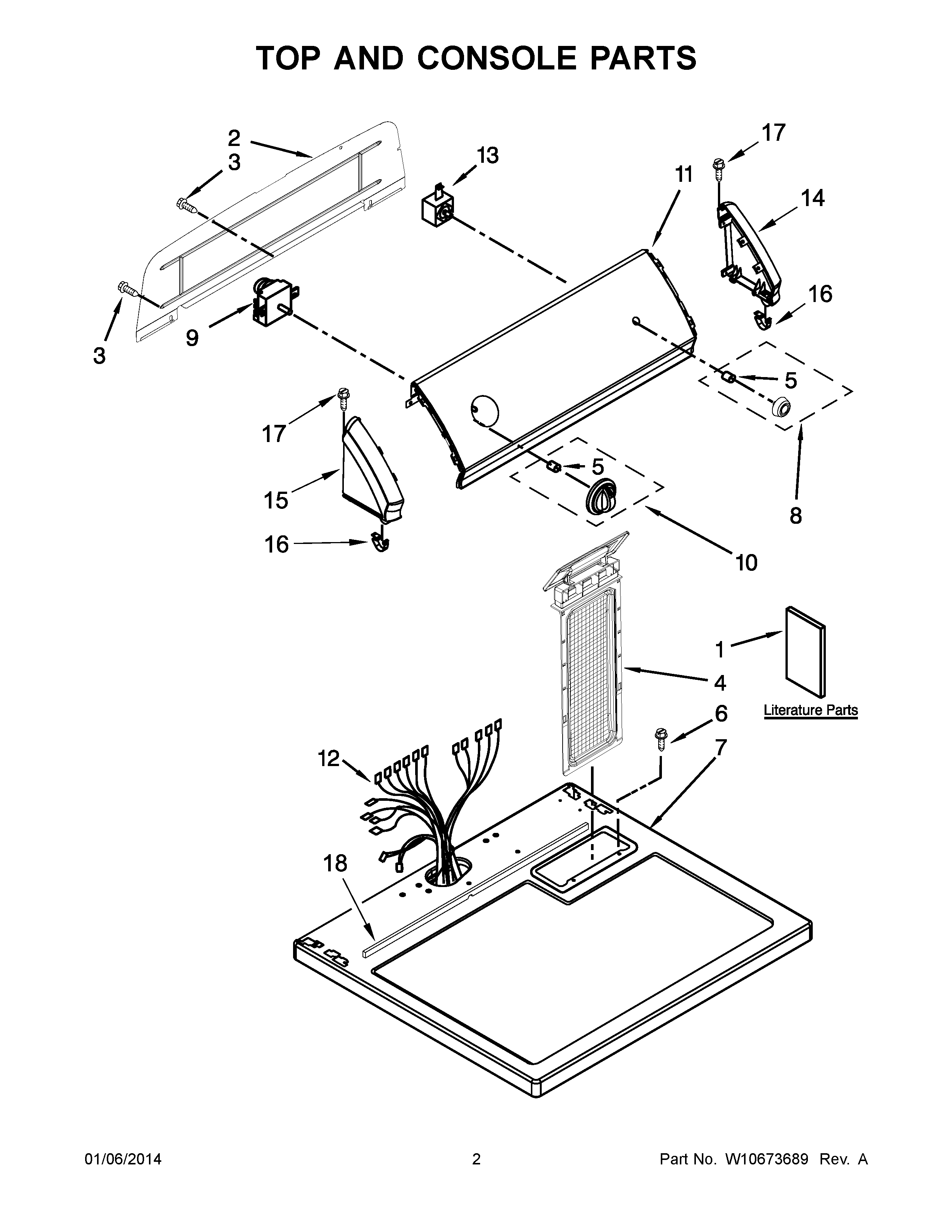

CGD126SDW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1WIRING DIAGRAM
2W10103406 Whirlpool Rear Panel
3WP693995 Whirlpool Screw
4WPW10717210 Whirlpool Dryer Lint Screen Filter
5WP8536939 Whirlpool Spring Clip
6W11693756 Whirlpool Screw Assembly
7WP8563663 Whirlpool Top Assembly
8W10317459 Whirlpool Knob
9W11043385 Whirlpool Timer
10W10317457 Whirlpool Knob
11PANEL, CONTROL
12W10186074 Whirlpool Wire Harness
13WP3977456 Whirlpool Start Switch
14WP8559501 Whirlpool Endcap
15WP8559502 Whirlpool Endcap Assembly
16WP8312709 Whirlpool Endcap Clip
17WP90767 Whirlpool Screw
18W10316616 Whirlpool Seal
