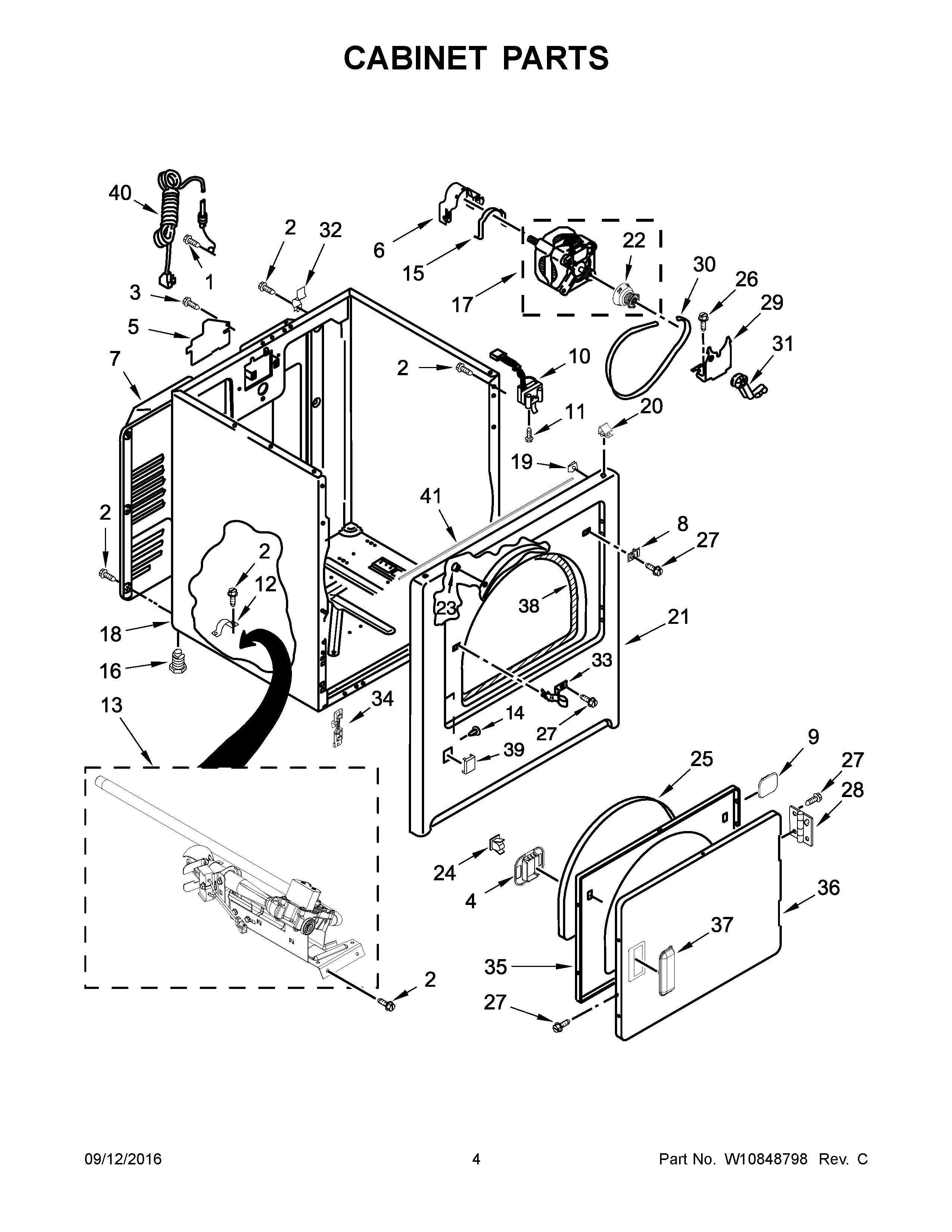

CGD126SDW2 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3390631 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	W11173656 Whirlpool Cover
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W11684591 Whirlpool Dryer Plug
9	WPW10529197 Whirlpool Catch Assembly
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	341029 Whirlpool Clamp
13	W10823508 Whirlpool Gas Burner
14	WP3404413 Whirlpool Plug
15	CLAMP
17	279827 Whirlpool Dryer Drive Motor
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10248059 Whirlpool Panel
22	WP8066184 Whirlpool Dryer Motor Pulley
23	279220 Whirlpool Clip
24	W11429587 Whirlpool Catch Assembly
25	SEAL-DOOR DRYER
26	3400500 Whirlpool Screw
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP348780 Whirlpool Base
30	341241 Whirlpool Dryer Drum Belt
31	WP691366 Whirlpool Dryer Idler Pulley Assembly
32	WP8066217 Whirlpool Hinge
33	W11429589 Whirlpool Strike
34	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
35	WPW10463967 Whirlpool Door Assembly
36	W10861224 Whirlpool Door
37	W10861225 Whirlpool Dryer White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	W10811916 Whirlpool Plug
40	W11222083 Whirlpool Power Cord
41	W11596046 Whirlpool Seal
