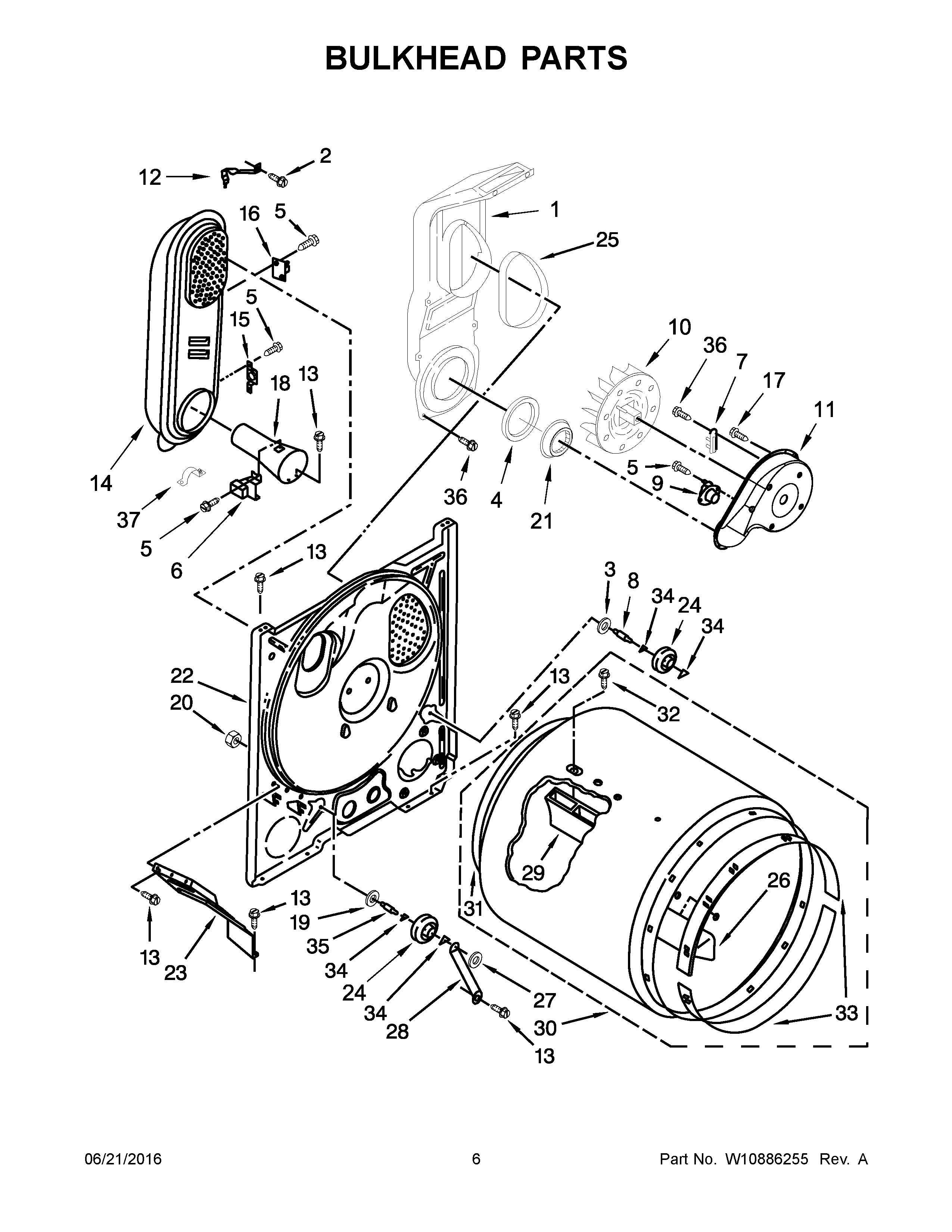

CGD126SDW3 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP338906 Whirlpool Dryer Gas Sensor
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	SHAFT SUPPORT ROLLER DRYER
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	279980 Whirlpool Box
15	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP8066049 Whirlpool Funnel Assembly
19	WP348197 Whirlpool Washer Assembly
20	W11229607 Whirlpool Nut
21	W11233063 Whirlpool Shield Assembly
22	W11178667 Whirlpool Bulkhead Assembly
23	W11398682 Whirlpool Bracket
24	349241T Whirlpool Dryer Drum Support Roller Kit
25	SEAL
26	WP3403636 Whirlpool Drum Baffle
27	WP90296 Whirlpool Clip
28	W11684613 Whirlpool Bracket
29	BAFFLE-DRM
30	W10899578 Whirlpool Dryer Drum Assembly
31	W10612022 Whirlpool Felt Seal
32	W10853898 Whirlpool Screw
33	279441 Whirlpool Front Bearing Ring
34	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35	SHAFT SUPPORT ROLLER DRYER
37	CLAMP, PIPE
