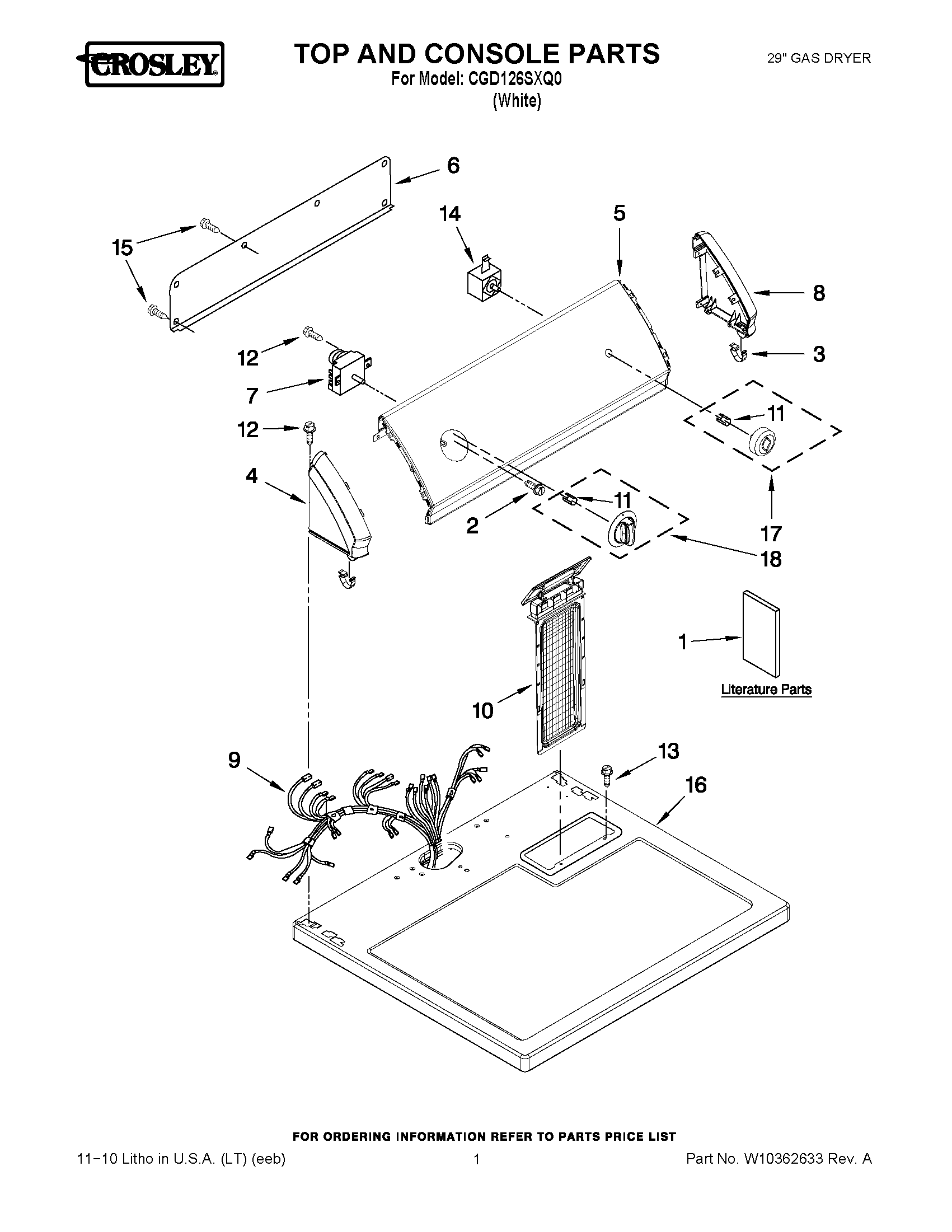

CGD126SXQ0 01 – TOP AND CONSOLE PARTS

CGD126SXQ0 01 – TOP AND CONSOLE PARTS

Written by

in

CGD126SXQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
2W10850756 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WP8559502 Whirlpool Endcap Assembly
5PANEL CONSOLE & BRACKET ASSEMBLY
6W10103406 Whirlpool Rear Panel
7WP3977678 Whirlpool Timer Assembly
8WP8559501 Whirlpool Endcap
98299877 Whirlpool Wire Harness
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13SCREW, 8-18 X 5/8
14WP3977456 Whirlpool Start Switch
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17W10317459 Whirlpool Knob
18W10317457 Whirlpool Knob
