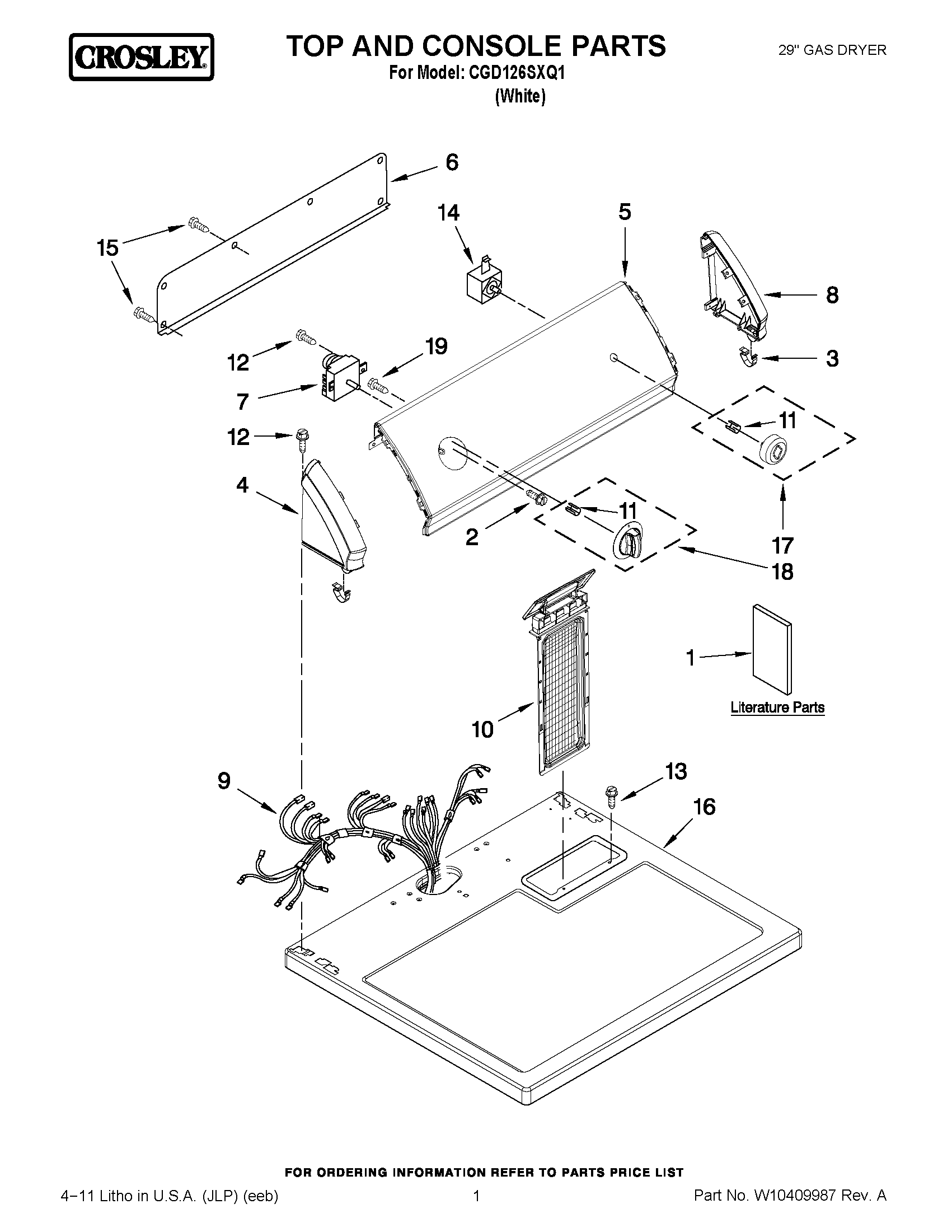

CGD126SXQ1 01 – TOP AND CONSOLE PARTS

CGD126SXQ1 01 – TOP AND CONSOLE PARTS

Written by

in

CGD126SXQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1WIRING DIAGRAM
1INSTRUCTIONS, INSTALLATION
2W10850756 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WP8559502 Whirlpool Endcap Assembly
5PANEL CONSOLE & BRACKET ASSEMBLY
6W10103406 Whirlpool Rear Panel
7W11043385 Whirlpool Timer
8WP8559501 Whirlpool Endcap
9HARNESS, WIRING
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14WP3977456 Whirlpool Start Switch
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17W10317459 Whirlpool Knob
18W10317457 Whirlpool Knob
19W10915367 Whirlpool Screw Assembly
