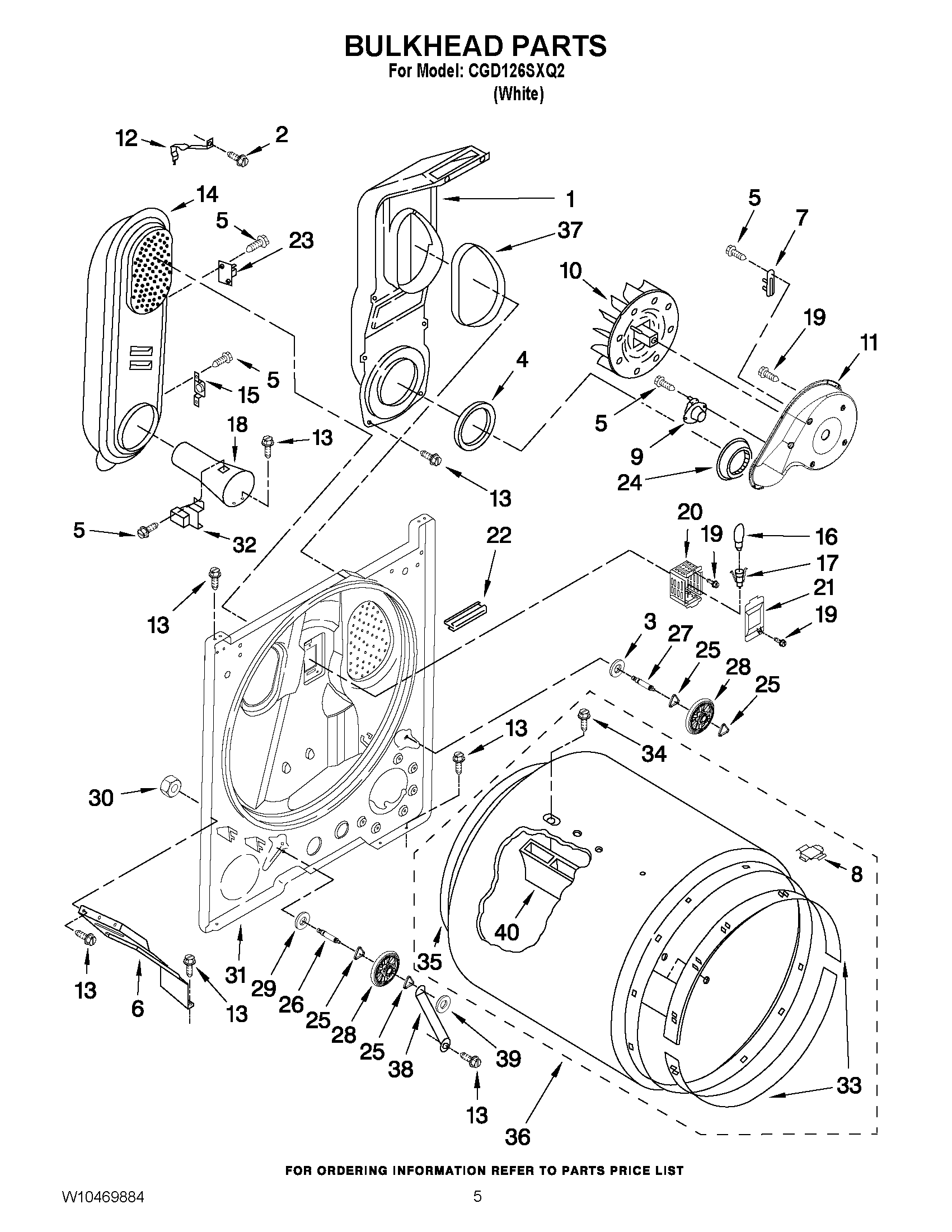

CGD126SXQ2 03 – BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
2	WP489463 Whirlpool Refrigerator Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11398682 Whirlpool Bracket
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	8066086 Whirlpool Plug
9	WP3387134 Whirlpool Dryer Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP3390631 Whirlpool Screw
14	279980 Whirlpool Box
16	WP22002263 Whirlpool Dryer 10W Light Bulb
17	W11222979 Whirlpool Socket
18	WP8066048 Whirlpool Funnel
19	WP488729 Whirlpool Refrigerator Door Screw
20	3977373 Whirlpool Bracket
21	W11226088 Whirlpool Lens Assembly
22	686889 Whirlpool Pad
23	W11050897 Whirlpool Dryer High Limit Thermostat
24	W11233063 Whirlpool Shield Assembly
25	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
26	SHAFT SUPPORT ROLLER DRYER
27	SHAFT SUPPORT ROLLER DRYER
28	349241T Whirlpool Dryer Drum Support Roller Kit
29	WP348197 Whirlpool Washer Assembly
30	W11229607 Whirlpool Nut
31	BULKHEAD
32	WP338906 Whirlpool Dryer Gas Sensor
33	WP3394509 Whirlpool Bearing Ring
34	W10853898 Whirlpool Screw
35	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
36	697760 Whirlpool Drum Assembly Primary OS2
37	SEAL
38	Bracket, Support
39	WP90296 Whirlpool Clip
40	WP342847 Whirlpool Drum Baffle
