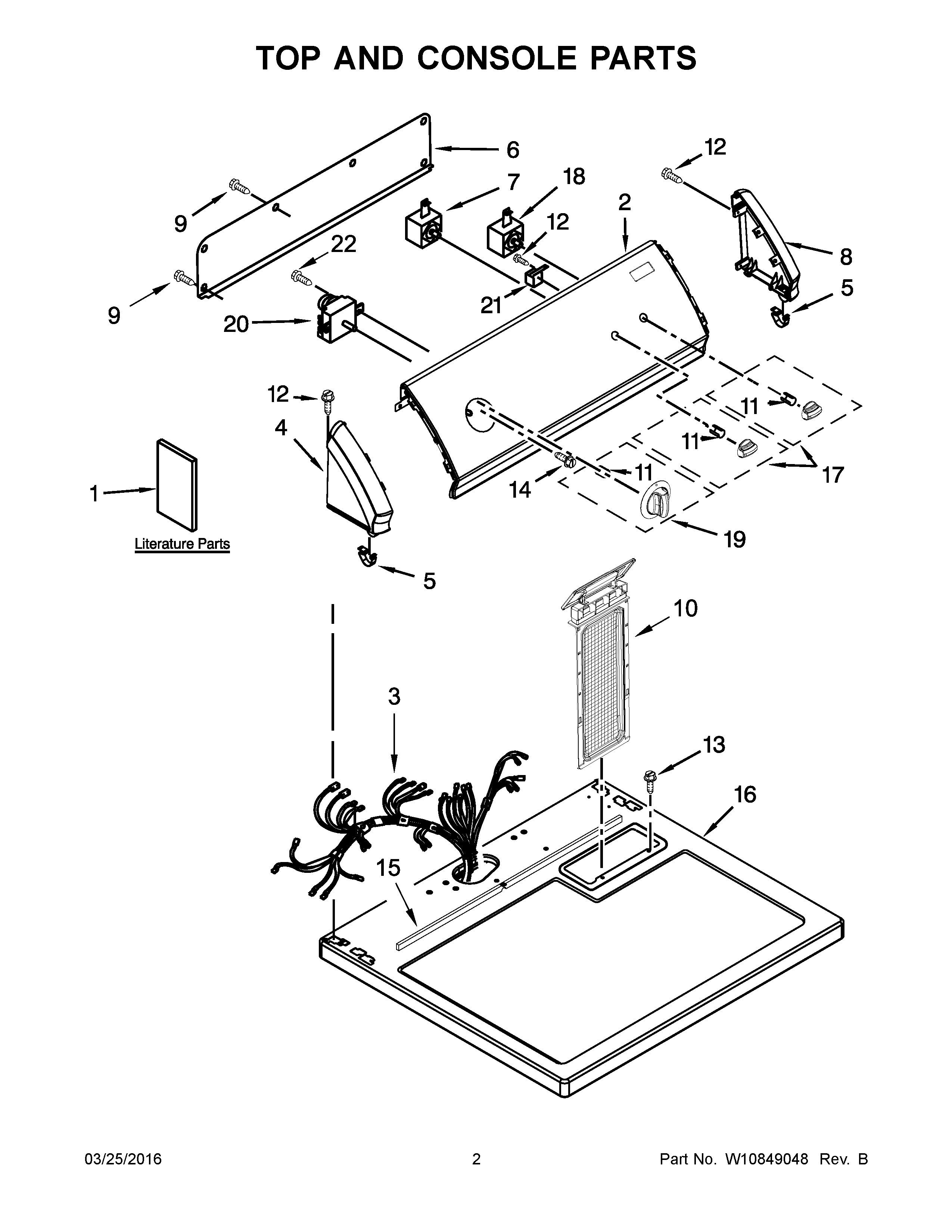

CGD137SDW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1A	USE & CARE GUIDE
1B	Wiring Diagram
2	W10536505 Whirlpool Control Panel
3	W10740201 Whirlpool Wire Harness
4	WP8559502 Whirlpool Endcap Assembly
5	WP8312709 Whirlpool Endcap Clip
6	W10103406 Whirlpool Rear Panel
7	WP3399639 Whirlpool Switch
8	WP8559501 Whirlpool Endcap
9	WP693995 Whirlpool Screw
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP90767 Whirlpool Screw
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	W10316616 Whirlpool Seal
16	WP8563663 Whirlpool Top Assembly
17	W10317458 Whirlpool Knob
18	WPW10117655 Whirlpool Dryer Start Switch
19	W10317457 Whirlpool Knob
20	WPW10185981 Whirlpool Timer
21	WP694419 Whirlpool Buzzer Adjuster
22	WP3400818 Whirlpool Screw
