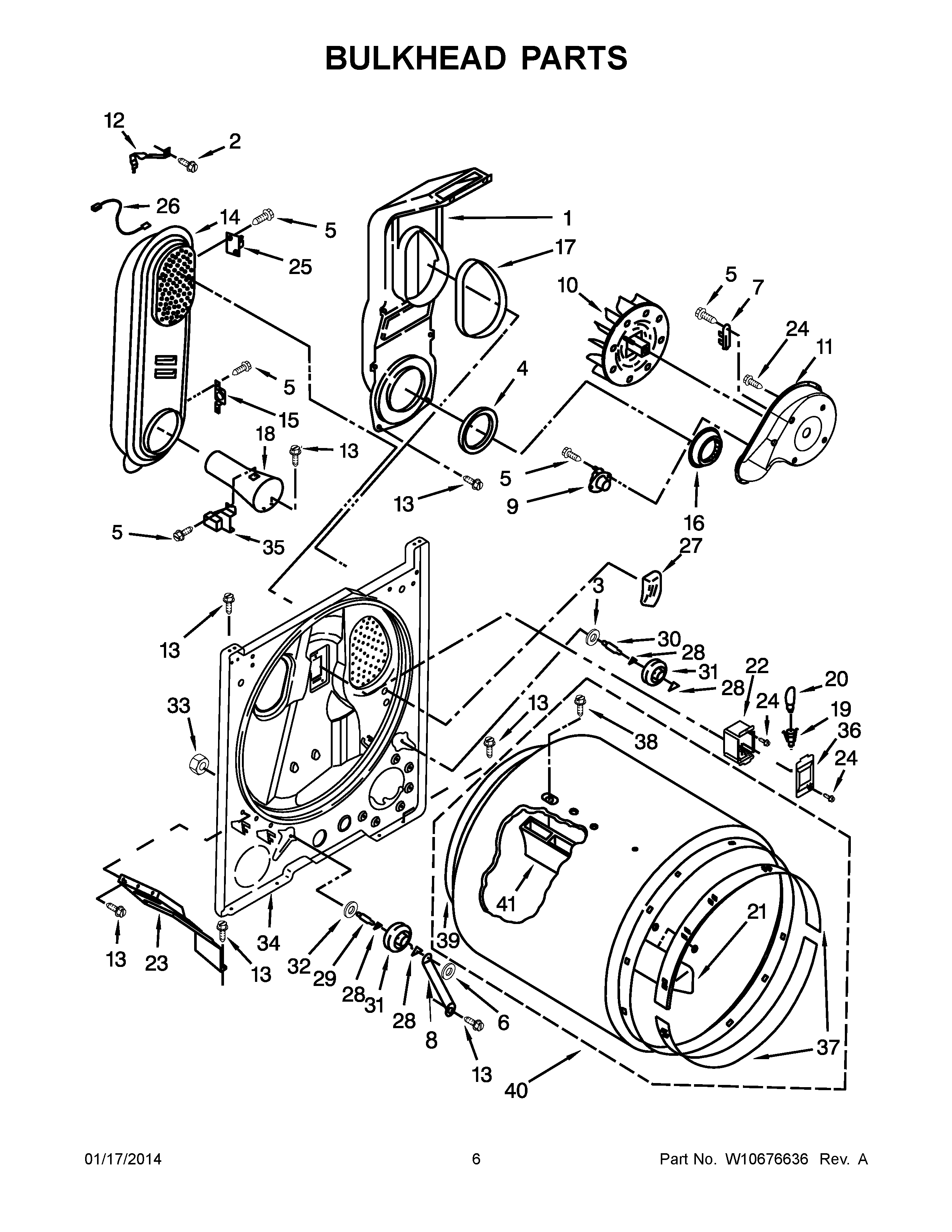

CGD147SDW0 04 – BULKHEAD PARTS

CGD147SDW0 04 – BULKHEAD PARTS

Written by

in

CGD147SDW0 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP90296 Whirlpool Clip
7WP3392519 Whirlpool Dryer Thermal Fuse
8W11684613 Whirlpool Bracket
9WP8318268 Whirlpool Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14279980 Whirlpool Box
15W11050897 Whirlpool Dryer High Limit Thermostat
16W11233063 Whirlpool Shield Assembly
17SEAL
18WP8066049 Whirlpool Funnel Assembly
19W11222979 Whirlpool Socket
20WP22002263 Whirlpool Dryer 10W Light Bulb
21WP3403636 Whirlpool Drum Baffle
223977373 Whirlpool Bracket
23W11398682 Whirlpool Bracket
24WP488729 Whirlpool Refrigerator Door Screw
25279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
26WP3401707 Whirlpool Wire Assembly
27SENSOR KIT
28WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29SHAFT SUPPORT ROLLER DRYER
30SHAFT SUPPORT ROLLER DRYER
31349241T Whirlpool Dryer Drum Support Roller Kit
32WP348197 Whirlpool Washer Assembly
33W11229607 Whirlpool Nut
34W10828905 Whirlpool Bulkhead OS1
35WP338906 Whirlpool Dryer Gas Sensor
36W11226088 Whirlpool Lens Assembly
37279441 Whirlpool Front Bearing Ring
38W10853898 Whirlpool Screw
39W10612022 Whirlpool Felt Seal
40W10899578 Whirlpool Dryer Drum Assembly
41BAFFLE-DRM
